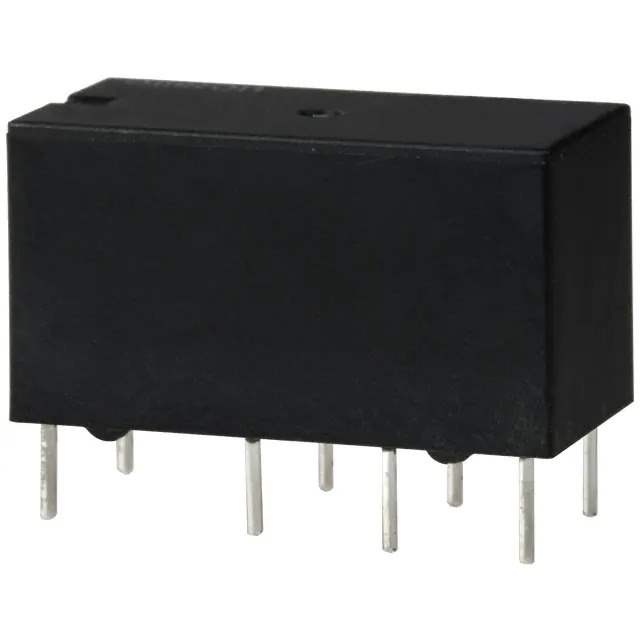

G5V-2-DC24 Real Image G5V-2-DC24 Real Image1 G5V-2-DC24 Real Image2 G5V-2-DC24 Real Image3
G5V-2-DC24 Real Image G5V-2-DC24 Real Image1 G5V-2-DC24 Real Image2 G5V-2-DC24 Real Image3
Same model may have multiple batches, images only for reference.

G5V-2-DC24

Part No G5V-2-DC24
Manufacturer Omron
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 24VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Omron
Series G5V-2
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 125VAC, 125VDC - Max
Coil Current 20.8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 7 ms
Release Time 3 ms
Temperature Range - Operating -25°C ~ 65°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 1.15 kOhms
Base Product Number G5V
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 846503-G5V-2-DC24
Ultra Librarian 3D Model Ultra Librarian G5V-2-DC24 CAD Model

Description

The G5V-2-DC24 is a signal relay from Omron's G5V-2 series. Bold the product name (e.g., G5V-2-DC24 → G5V-2-DC24) and manufacturer (e.g., Omron → Omron).

  • Relay Type: Signal Relay
  • Series: G5V-2
  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2A
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.15 kOhms
  • Switching Voltage: 125VAC or 125VDC
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package: 25 pcs
  • Features: Sealed and Fully Protected
