NXP PMEG3030EP,115 Schottky Barrier Rectifier Diode

The NXP PMEG3030EP,115 is a highly efficient, low power loss Schottky barrier rectifier diode designed to meet the needs of a wide range of electronic applications. This surface-mounted diode is a part of NXP's portfolio of energy-saving, high-performance components that cater to the increasing demand for power efficiency in modern electronic circuits.

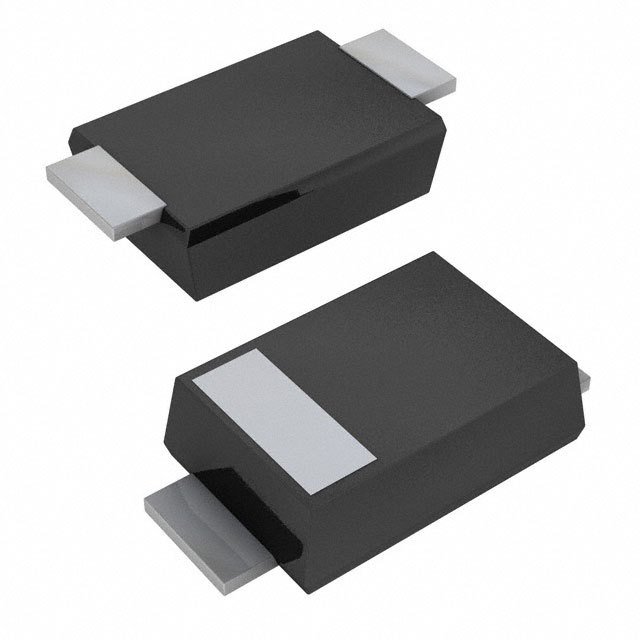

With its compact SOD-128 package, the PMEG3030EP,115 is optimized for automated manufacturing processes, making it an ideal choice for high-density circuit designs. It boasts a reverse voltage of 30V and a forward current of 3A, ensuring that it can handle moderate power requirements with ease. The low forward voltage drop characteristic of Schottky diodes is well-represented in this component, which minimizes energy loss during conduction and enhances overall circuit efficiency.

One of the key features of the PMEG3030EP,115 is its low reverse leakage current, which reduces power consumption when the diode is in the blocking state. This characteristic is particularly beneficial in battery-powered devices, where energy conservation is critical. Additionally, the fast switching capability of this diode makes it suitable for high-frequency applications, contributing to reduced switching losses and improved performance in power supply circuits.

The robust construction of the NXP PMEG3030EP,115 ensures that it can withstand the thermal and mechanical stresses commonly encountered in electronic devices. It has a wide operating temperature range, which allows it to perform reliably in various environmental conditions. The diode is also characterized by its low thermal resistance, enabling efficient heat dissipation and contributing to the longevity of the device.

Applications for the PMEG3030EP,115 include polarity protection, low voltage rectification, and freewheeling in a variety of electronic products such as portable devices, power management systems, and automotive modules. Its combination of efficiency, reliability, and compact form factor makes it a versatile component for designers looking to optimize their power circuits without compromising on space or performance.

In summary, the NXP PMEG3030EP,115 Schottky barrier rectifier diode is a high-quality, energy-efficient solution for modern electronic designs that require compact, high-performance power components.
