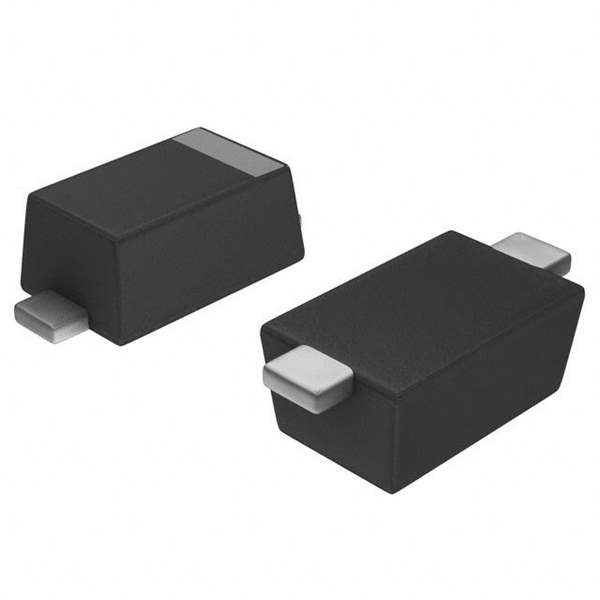

PTVS20VS1UR,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PTVS20VS1UR,115

Part No PTVS20VS1UR,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description ESD Protection Diodes / TVS Diodes 400 W Transient Voltage Suppressor
Datasheet
PTVS20VS1UR,115 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 20V
Minimum Breakdown Voltage 22.2V
Max Clamping Voltage 32.4V
Peak Pulse Current(Ippm) 12.3A
Power Dissipation - Pd 400W
Applications Automotive
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package CFP3
Win Source Part Number 1090624-PTVS20VS1UR,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTVS20VS1UR,115 CAD Model

Description

The Nexperia USA Inc. PTVS20VS1UR,115 is a Zener electronic component that is designed for automotive applications.

  • Type: SMD (SMT)
  • Channel: one unidirectional
  • Category: circuit protection
  • Operating Temperature Range: -55°C to 150°C (TA)
  • Case/Package: CFP3
  • STAND-OFF Voltage (Vwm): 20V
  • Minimum Breakdown Voltage: 22.2V
  • Max Clamping Voltage: 32.4V
  • Peak Pulse Current(Ippm): 12.3A
  • Power Dissipation - Pd: 400W
  • Supply and Demand Status: limited
