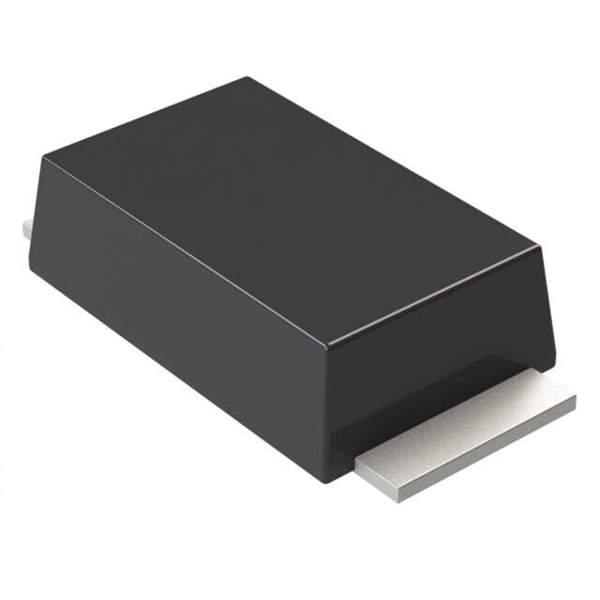

PMEG6045ETPX Real Image
Same model may have multiple batches, images only for reference.

PMEG6045ETPX

Part No PMEG6045ETPX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 4.5A SOD128
Datasheet
PMEG6045ETPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 4.5A
Voltage - Forward (Vf) (Max) @ If 530mV @ 4.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 20ns
Current - Reverse Leakage @ Vr 400μA @ 60V
Capacitance @ Vr, F 575pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package CFP5
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 1089654-PMEG6045ETPX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMEG6045ETPX CAD Model

Description

The Nexperia PMEG6045ETPX is a Schottky diode with a voltage-DC reverse (Vr) (Max) of 60V and an average rectified current (Io) of 4.5A.

  • Voltage-DC Reverse (Vr) (Max): 60V
  • Average Rectified Current (Io): 4.5A
  • Voltage-Forward (Vf) (Max) @ If: 530mV @ 4.5A
  • Reverse Recovery Time (trr): 20ns
  • Current-Reverse Leakage @ Vr: 400μA @ 60V
  • Capacitance @ Vr, F: 575pF @ 1V, 1MHz
  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Fast Recovery: 200mA (Io)
