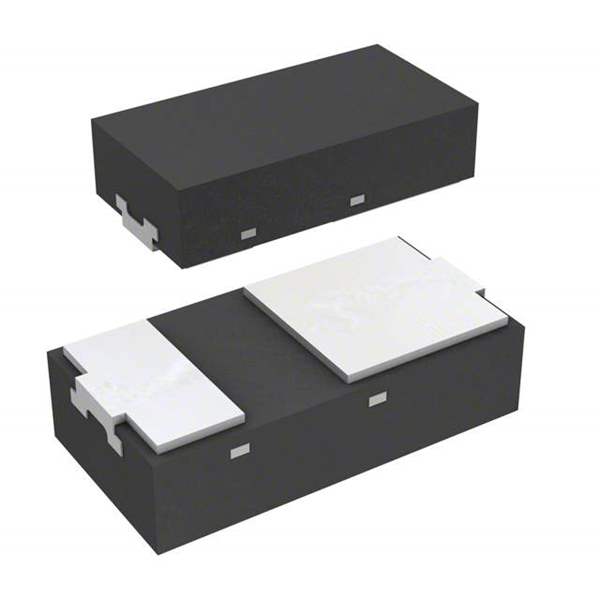

PMEG4010EPK,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG4010EPK,315

Part No PMEG4010EPK,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A 2DFN
Datasheet
PMEG4010EPK,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 600mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 3ns
Current - Reverse Leakage @ Vr 4μA @ 1V
Capacitance @ Vr, F 60pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package DFN1608D-2
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089621-PMEG4010EPK,315
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG4010EPK,315 CAD Model

Description

The Nexperia USA Inc. PMEG4010EPK,315 is a Schottky diode designed for use in electronic circuits.

  • Maximum Reverse Voltage (Vr): 40V
  • Average Rectified Current (Io): 1A
  • Voltage Forward (Vf) (Max) @ If: 600mV @ 1A
  • Reverse Recovery Time (trr): 3ns
  • Current Reverse Leakage @ Vr: 4μA @ 1V
  • Capacitance @ Vr, F: 60pF @ 1V, 1MHz
  • Recovery Speed: 200mA (Io)
  • Application: Discrete Semiconductor Products
