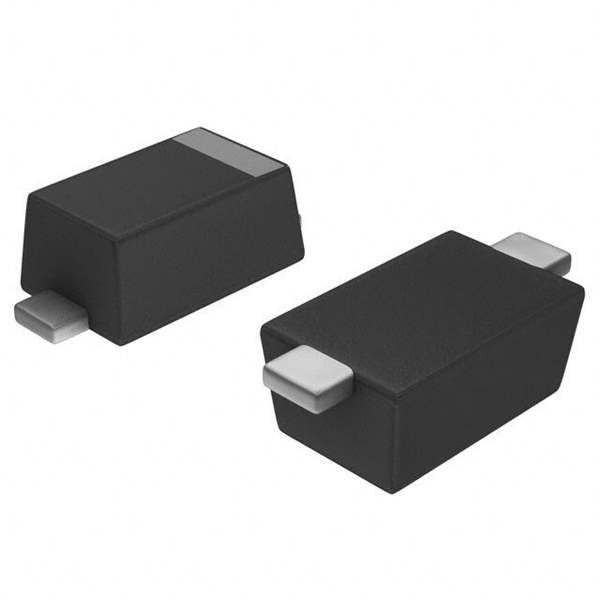

PMEG4010EH,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG4010EH,115

Part No PMEG4010EH,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SOD123F
Datasheet
PMEG4010EH,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 640mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 40V
Capacitance @ Vr, F 50pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123F
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089618-PMEG4010EH,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG4010EH,115 CAD Model

Description

The Nexperia USA Inc. PMEG4010EH,115 is a Schottky diode with SMD (SMT) mounting.

  • Mounting Type: SMD (SMT)
  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 1A (DC)
  • Forward Voltage: 640mV @ 1A
  • Reverse Leakage Current: 100μA @ 40V
  • Capacitance: 50pF @ 1V and 1MHz
  • Operating Temperature Range: -40°C to 150°C
  • Package: SOD-123F
