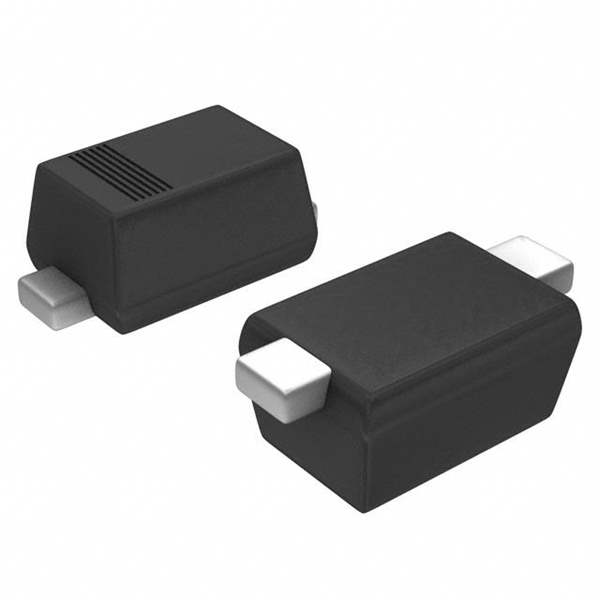

PMEG2005EB,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG2005EB,115

Part No PMEG2005EB,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Schottky Diodes & Rectifiers 20 V, 500 mA low VF Schottky barrier diode
Datasheet
PMEG2005EB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA (DC)
Voltage - Forward (Vf) (Max) @ If 480mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 30μA @ 10V
Capacitance @ Vr, F 30pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-523
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1089540-PMEG2005EB,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG2005EB,115 CAD Model

Description

The Nexperia USA Inc. PMEG2005EB,115 is a Schottky diode designed for efficient rectification and voltage clamping in low voltage applications.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Forward Voltage: 480mV @ 500mA
  • Reverse Leakage Current: 30μA @ 10V
  • Capacitance: 30pF @ 1V and 1MHz
  • Package: SOD-523
  • Maximum Junction Temperature: 125°C
  • Alternative Parts: PMEG2005EB, SBR05U20T5-7, and PMEG2005EB,115
  • Supply and Demand Status: Sufficient
