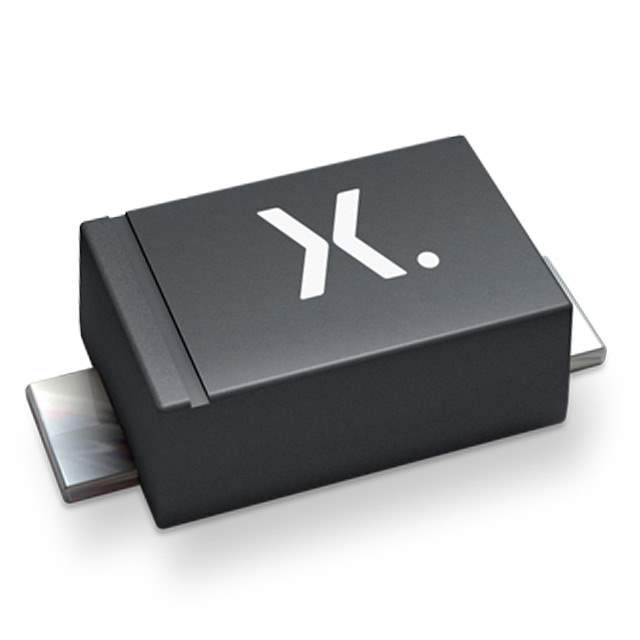

PMEG10010ELRX Real Image PMEG10010ELRX real image10953 PMEG10010ELRX Real Image1 PMEG10010ELRX Real Image2
PMEG10010ELRX Real Image PMEG10010ELRX real image10953 PMEG10010ELRX Real Image1 PMEG10010ELRX Real Image2
Same model may have multiple batches, images only for reference.

PMEG10010ELRX

Part No PMEG10010ELRX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 100V 1A 3.7ns Automotive 2-Pin SOD-123W T/R / DIODE SCHOTTKY 100V 1A SOD123
Datasheet
PMEG10010ELRX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 770mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 3.7ns
Current - Reverse Leakage @ Vr 150nA @ 100V
Capacitance @ Vr, F 70pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package CFP3
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 1089526-PMEG10010ELRX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PMEG10010ELR
Introduction Date May 07, 2015
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PMEG10010ELRX CAD Model

Description

The PMEG10010ELRX Schottky diode from Nexperia USA Inc. is designed for use in discrete semiconductor products.

  • Package: CFP3
  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 1A
  • Forward Voltage: 770mV @ 1A
  • Reverse Recovery Time: 3.7ns
  • Reverse Leakage Current: 150nA @ 100V
