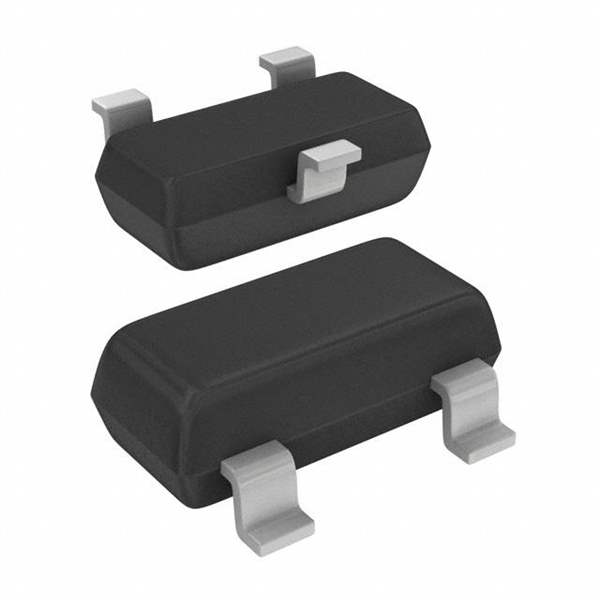

PMBTA45,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMBTA45,215

Part No PMBTA45,215
Manufacturer Nexperia USA Inc.
Catalog TRANSISTORS
Description Bipolar Transistors - BJT 500 V, 150 mA NPN high-voltage low VCEsat transistor
Datasheet
PMBTA45,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia
Mounting Style SMD/SMT
Package / Case SOT-23-3
Transistor Polarity NPN
Configuration Single
Collector- Emitter Voltage VCEO Max 500 V
Collector- Base Voltage VCBO 500 V
Emitter- Base Voltage VEBO 6 V
Collector-Emitter Saturation Voltage 65 mV
Maximum DC Collector Current 150 mA
Pd - Power Dissipation 300 mW
Gain Bandwidth Product fT 35 MHz
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
DC Current Gain hFE Max 100
Height 1 mm
Length 3 mm
Technology Si
Width 1.4 mm
Brand Nexperia
Continuous Collector Current 150 mA
DC Collector/Base Gain hfe Min 50
Product Type BJTs - Bipolar Transistors
Standard Pack Qty 3000
Subcategory Transistors
Ultra Librarian 3D Model Ultra Librarian PMBTA45,215 CAD Model

Description

The Nexperia USA Inc. 1089496-PMBTA45,215 is an active electronic component that has limited supply and demand.

  • Transistor Polarity: NPN
  • Maximum Current Collector: 150mA
  • Frequency Transition: 35MHz
  • Operating Temperature: 150°C (TJ)
