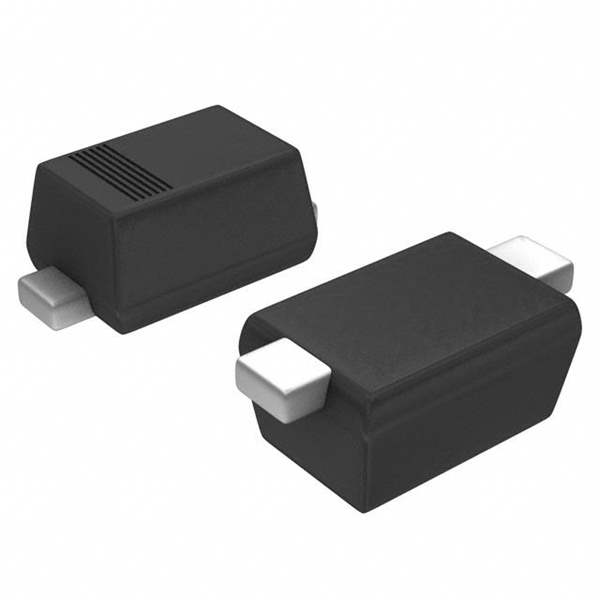

PESD5V0X1UAB,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD5V0X1UAB,115

Part No PESD5V0X1UAB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9VC SOD523
Datasheet
PESD5V0X1UAB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 9V (Typ)
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications Automotive
Capacitance @ Frequency 1.55pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1087628-PESD5V0X1UAB,115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PESD5V0X1UAB,115 CAD Model

Description

The Nexperia USA Inc. PESD5V0X1UAB,115 is a Zener diode designed for automotive applications.

  • Stand-Off Voltage (Max): 5V
  • Breakdown Voltage (Min): 5.8V
  • Clamping Voltage (Max): 9V (typical)
  • Channel: Unidirectional
  • Capacitance: 1.55pF @ 1MHz
  • Mounting: SMD (SMT)
  • Case/Package: SOD-523
  • Operating Temperature: -55°C to 150°C (TA)
  • Status: Active
  • Supply and Demand Status: Balanced
