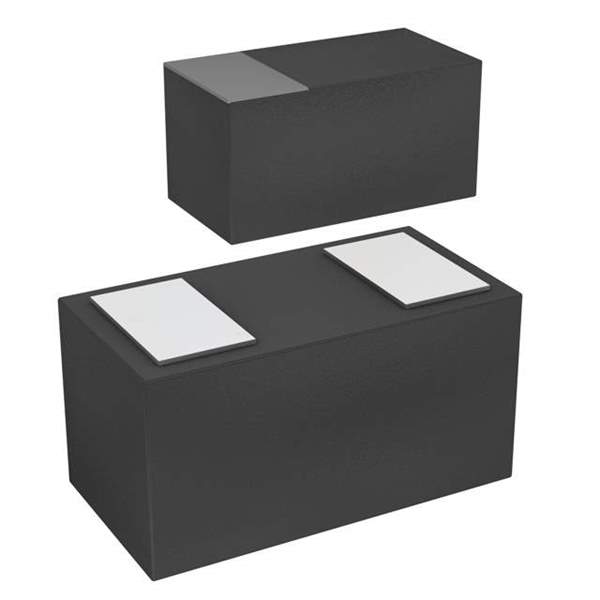

PESD5V0X1BCSFYL Real Image
Same model may have multiple batches, images only for reference.

PESD5V0X1BCSFYL

Part No PESD5V0X1BCSFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 5.5VC DSN0603-2 / 5.5V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
PESD5V0X1BCSFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 5.5V
Current - Peak Pulse (10/1000µs) 7A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 1.1pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Product Number PESD5V0
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 568-13197-2-ND,568-13197-1,1727-2679-2,568-13197-2,1727-2679-1,1727-2679-6,568-13197-6,934069673315,568-13197-6-ND,PESD5V0X1BCSFYL-ND,568-13197-1-ND
Standard Package 9,000
Win Source Part Number 958379-PESD5V0X1BCSFYL
Ultra Librarian 3D Model Ultra Librarian PESD5V0X1BCSFYL CAD Model

Description

The PESD5V0X1BCSFYL is a Zener type TVS diode designed for general purpose applications.

  • Package: Tape and Reel
  • Standard Package: 9,000
  • Voltage Reverse Standoff: 5V
  • Breakdown Voltage: 6V
  • Voltage Clamping @ Ipp: 5.5V
  • Capacitance @ Frequency: 1.1pF @ 1MHz
  • Current Peak Pulse: 7A (8/20μs)
  • Mounting Technology: SMD (SMT)
  • Ideal for: Circuit protection in TVS - Diodes applications
