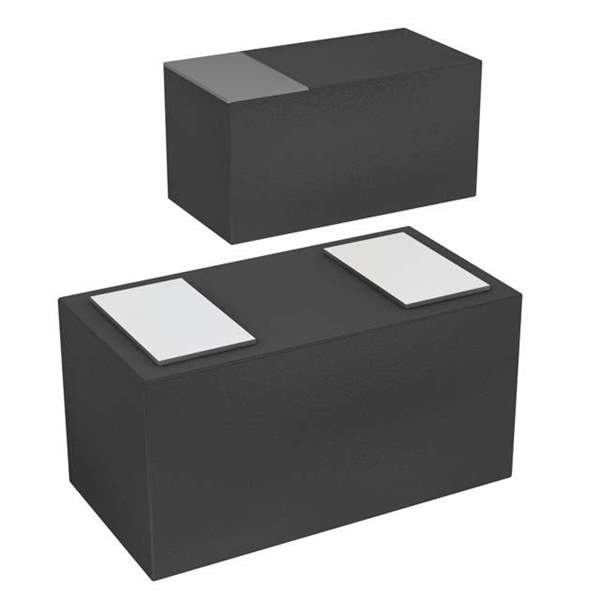

PESD5V0R1BSFYL Real Image
Same model may have multiple batches, images only for reference.

PESD5V0R1BSFYL

Part No PESD5V0R1BSFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5V 9.2V DSN0603-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Maximum)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Maximum) at Ipp 9.2V (Typ)
Current - Peak Pulse (10/1000μs) 4.5A (8/20μA)
Power Line Protection No
Applications Use For General
Capacitance at Frequency 0.1pF at 1MHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Manufacturer Pack Quantity 9,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800698-PESD5V0R1BSFYL
Ultra Librarian 3D Model Ultra Librarian PESD5V0R1BSFYL CAD Model

Description

The PESD5V0R1BSFYL is a bidirectional zener diode manufactured by Nexperia USA Inc.

  • Applications: General
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Peak Pulse Current: 4.5A (8/20μA)
  • Operating Temperature Range: -40°C to 125°C
  • Package: DSN0603-2
  • Capacitance: 0.1pF @ 1MHz
