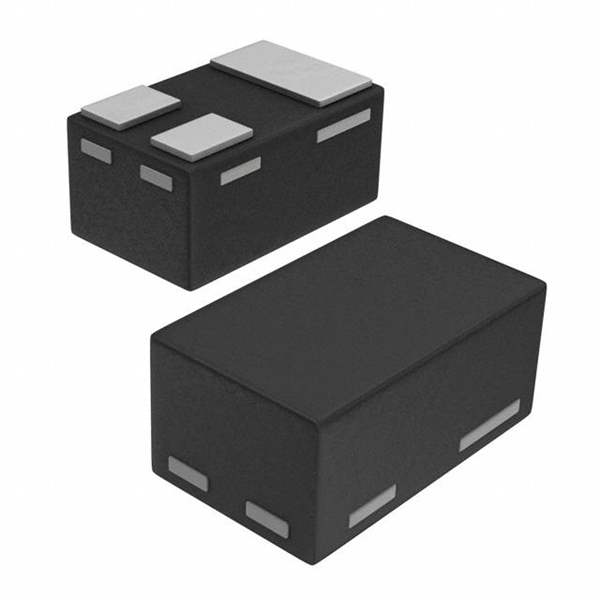

PESD5V0L2UM,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD5V0L2UM,315

Part No PESD5V0L2UM,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM SOD883
Datasheet
PESD5V0L2UM,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.46V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 16pF @ 1MHz
Mounting SMD (SMT)
Case / Package SOT-883
Win Source Part Number 1087585-PESD5V0L2UM,315
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD5V0L2UM,315 CAD Model

Description

The Nexperia USA Inc. PESD5V0L2UM,315 is a type of zener that has unidirectional channels of 2 and bidirectional channels of 1.

  • Capacitance @ Frequency: 16pF @ 1MHz
  • Category: Circuit Protection
  • Status: Active
  • Package: SOT-883
  • Stand-off Voltage (Vwm): 5V (max)
  • Minimum Breakdown Voltage: 6.46V
  • Maximum Clamping Voltage: 15V
  • Peak Pulse Current(Ippm): 2.5A (8/20μs)
  • Power Dissipation - Pd: 30W
  • Supply and Demand Status: Sufficient
