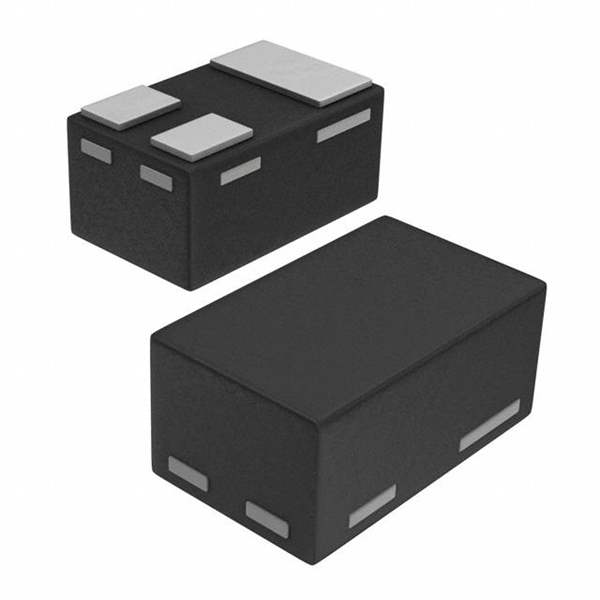

PESD3V3L2UM,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD3V3L2UM,315

Part No PESD3V3L2UM,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM SOT883
Datasheet
PESD3V3L2UM,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V (Max)
Minimum Breakdown Voltage 5.32V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 22pF @ 1MHz
Mounting SMD (SMT)
Case / Package DFN1006-3
Win Source Part Number 1087554-PESD3V3L2UM,315
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Safety
Ultra Librarian 3D Model Ultra Librarian PESD3V3L2UM,315 CAD Model

Description

The PESD3V3L2UM,315 is a zener diode with a stand-off voltage of 3.3V (Max).

  • Minimum Breakdown Voltage: 5.32V
  • Capacitance: 22pF @ 1MHz
  • Application: General-Purpose
  • Channel: Unidirectional and Bidirectional
  • Feature: Power Line Protection
  • Package Type: DFN1006-3
  • Operating Temperature Range: -30°C to 85°C (TA)
  • Category: Circuit Protection
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Used in: Computers and Computer Peripherals, Consumer Electronics, and Safety Devices
