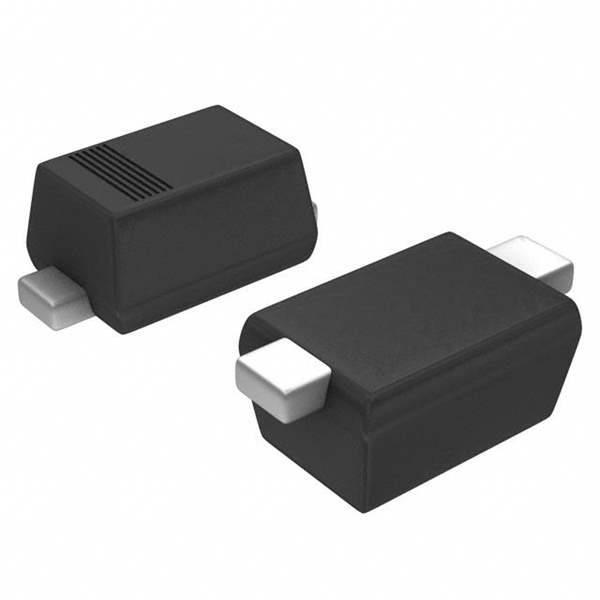

PESD3V3L1UB,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD3V3L1UB,115

Part No PESD3V3L1UB,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 11VC SOD523
Datasheet
PESD3V3L1UB,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V (Max)
Minimum Breakdown Voltage 5.3V
Max Clamping Voltage 11V
Peak Pulse Current(Ippm) 4.5A (8/20μs)
Power Dissipation - Pd 45W
Applications Automotive
Capacitance @ Frequency 34pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1087551-PESD3V3L1UB,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD3V3L1UB,115 CAD Model

Description

The Nexperia USA Inc. PESD3V3L1UB,115 is a high-quality zener diode that is used in various automotive applications.

  • Capacitance: 34pF @ 1MHz
  • Stand-off Voltage: 3.3V (Max)
  • Minimum Breakdown Voltage: 5.3V
  • Max Clamping Voltage: 11V
  • Peak Pulse Current: 4.5A (8/20μs)
  • Power Dissipation: 45W
  • Case/Package: SOD-523
  • Mounting: SMD (SMT)
  • Temperature Range Operating: -55°C to 150°C (TA)
  • Supply and Demand Status: Sufficient
