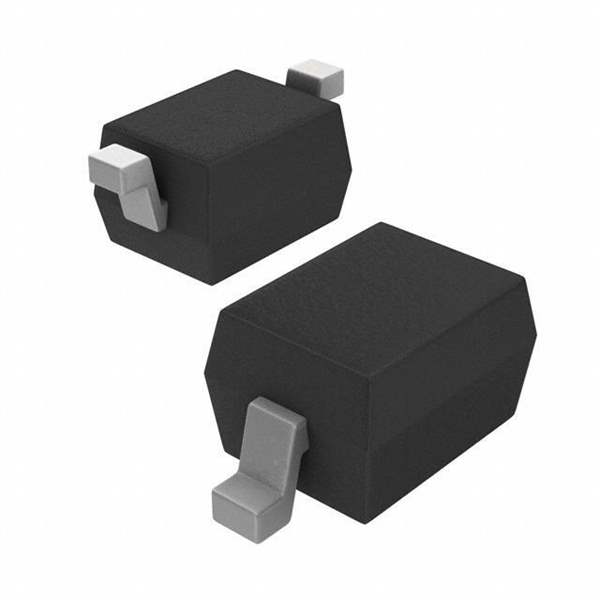

PESD24VL1BA,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD24VL1BA,115

Part No PESD24VL1BA,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description ESD Protection Diodes / TVS Diodes Low capacitance bidirectional ESD protection diode in SOD323
Datasheet
PESD24VL1BA,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 25.4V
Max Clamping Voltage 70V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 11pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1087537-PESD24VL1BA,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD24VL1BA,115 CAD Model

Description

The Nexperia USA Inc. PESD24VL1BA is a bidirectional zener diode with a stand-off voltage of 24V (Max) and a minimum breakdown voltage of 25.4V.

  • Maximum Clamping Voltage: 70V
  • Peak Pulse Current(Ippm): 3A (8/20μs)
  • Capacitance: 11pF @ 1MHz
  • Mounting: SMD (SMT)
  • Category: Circuit Protection
  • Status: Active
  • Application: General Purpose
  • Popularity Rating: Medium
  • Supply and Demand Status: Sufficient
