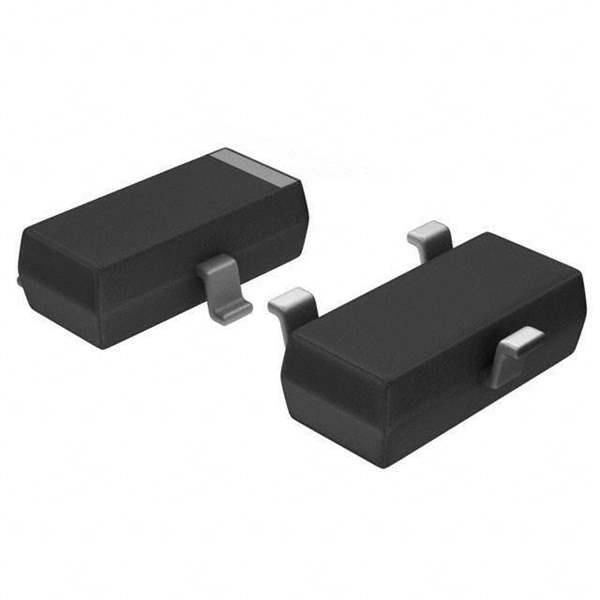

PDTC143ET,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PDTC143ET,215

Part No PDTC143ET,215
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 250MW TO236AB
Datasheet
PDTC143ET,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 4.7k
Resistor - Emitter Base (R2) (Ohms) 4.7k
Typical Gain (hFE) (Min) 30 @ 10mA, 5V
Max Vce (sat) 150mV @ 500μA, 10mA
Collector Cut-off Current(Max) 1μA
Maximum Power Dissipation 250mW
Mounting SMD (SMT)
Case / Package TO-236AB (SOT23)
Win Source Part Number 1087226-PDTC143ET,215
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PDTC143ET,215 CAD Model

Description

The Nexperia USA Inc. PDTC143ET,215 is an active NPN pre-biased transistor with a maximum collector-emitter breakdown voltage of 50V and a maximum current collector of 100mA.

  • Resistor-Base: 4.7k
  • Resistor-Emitter Base: 4.7k
  • Maximum Vce (sat): 150mV @ 500μA, 10mA
  • Collector Cut-off Current: 1μA
  • Typical Gain: 30 @ 10mA, 5V
  • Maximum Power Dissipation: 250mW
  • Package: TO-236AB (SOT23)
  • Maximum Temperature Range: 150°C
