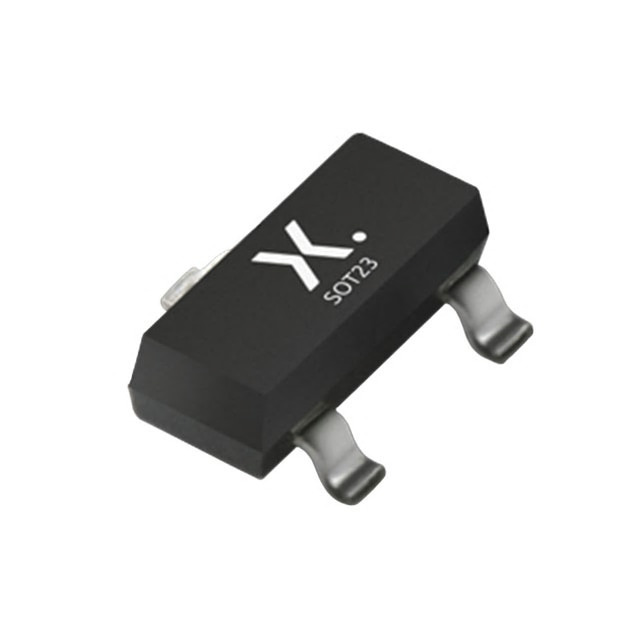

PDTC114ET,215 Nexperia USA Inc. PDTC114ET,215 label picture
PDTC114ET,215 Nexperia USA Inc. PDTC114ET,215 label picture
Same model may have multiple batches, images only for reference.

PDTC114ET,215

Part No PDTC114ET,215
Manufacturer Nexperia USA Inc.
Catalog TRANSISTORS
Description Digital Transistors 50 V, 100 mA NPN resistor-equipped transistor; R1 = 10 kohm, R2 = 10 kohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia
Configuration Single
Transistor Polarity NPN
Typical Input Resistor 10 kOhms
Typical Resistor Ratio 1
Mounting Style SMD/SMT
Package / Case SOT-23-3
Collector- Emitter Voltage VCEO Max 50 V
Continuous Collector Current 100 mA
Peak DC Collector Current 100 mA
Minimum Operating Temperature - 65 C
Maximum Operating Temperature + 150 C
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Height 1 mm
Length 3 mm
Width 1.4 mm
Brand Nexperia
Product Type Digital Transistors
Standard Pack Qty 3000
Subcategory Transistors
Ultra Librarian 3D Model Ultra Librarian PDTC114ET,215 CAD Model

Description

The PDTC114ET,215 from Nexperia USA Inc. is an NPN pre-biased transistor that is suitable for use in a wide range of electronic applications.

  • Maximum Power: 250mW
  • Frequency Transition: 230MHz
  • Mounting Type: Surface Mount
  • Package / Case: Reel
  • Current Collector (Ic) Maximum: 100mA
  • Voltage Collector-Emitter Breakdown Maximum: 50V
