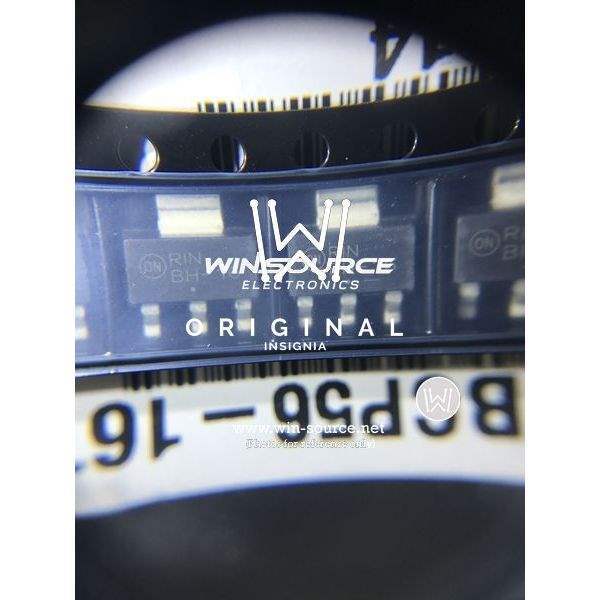

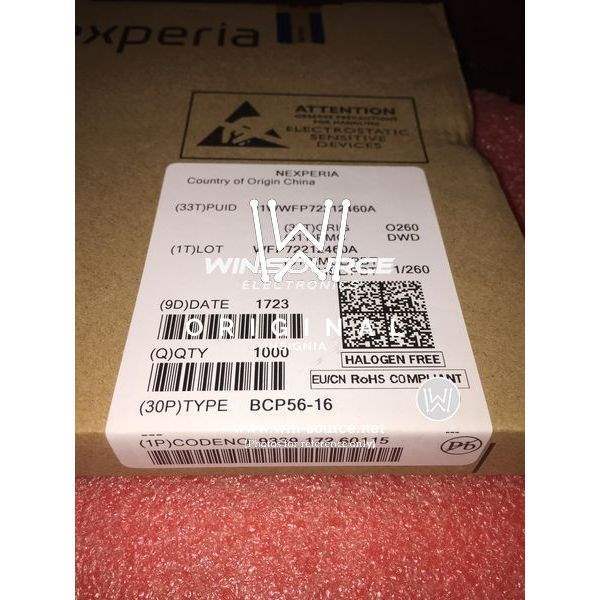

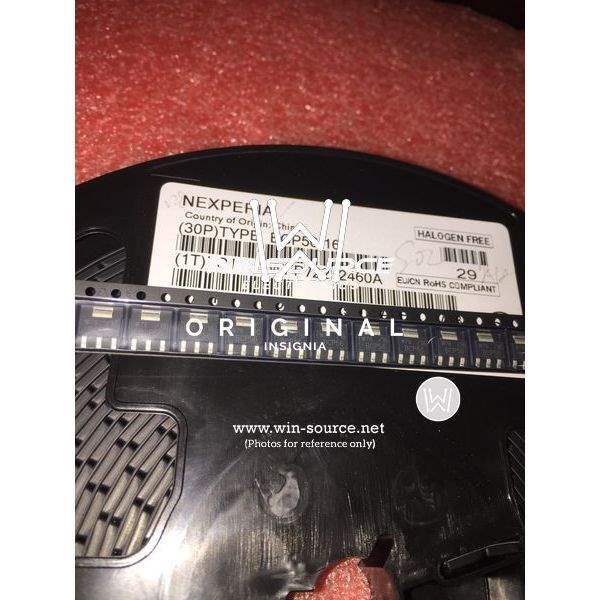

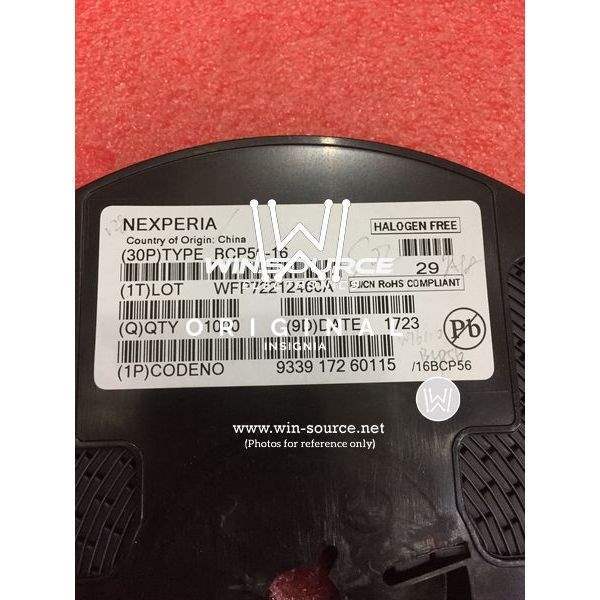

BCP56-16,115 NXP BCP56-16,115 label picture BCP56-16,115 label picture 2 BCP56-16,115 real image BCP56-16,115 real image 2
BCP56-16,115 NXP BCP56-16,115 label picture BCP56-16,115 label picture 2 BCP56-16,115 real image BCP56-16,115 real image 2
Same model may have multiple batches, images only for reference.

BCP56-16,115

Part No BCP56-16,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 1A SOT223
Datasheet
BCP56-16,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Nexperia USA Inc.
Package Tape & Reel
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 80 V
Vce Saturation (Max) @ Ib, Ic 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 2V
Power - Max 960 mW
Frequency - Transition 180MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223
Base Product Number BCP56
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 744800-BCP56-16,115
Ultra Librarian 3D Model Ultra Librarian BCP56-16,115 CAD Model

Description

The 744800-BCP56-16,115 is a single bipolar transistor from Nexperia USA Inc.

  • Category: discrete semiconductor products
  • Type: NPN
  • Package: tape and reel
  • Standard Package Quantity: 1,000 pieces
  • Power Rating: 960mW
  • Collector-Emitter Breakdown Voltage: 80V
  • Collector Current: 1A
  • Frequency Transition: 180MHz
  • Mounting Type: surface mountable
  • Package: TO-261-4, TO-261AA
  • Temperature Range: -40°C to 125°C
  • Product Status: active
  • REACH: unaffected
