BC817-40,235

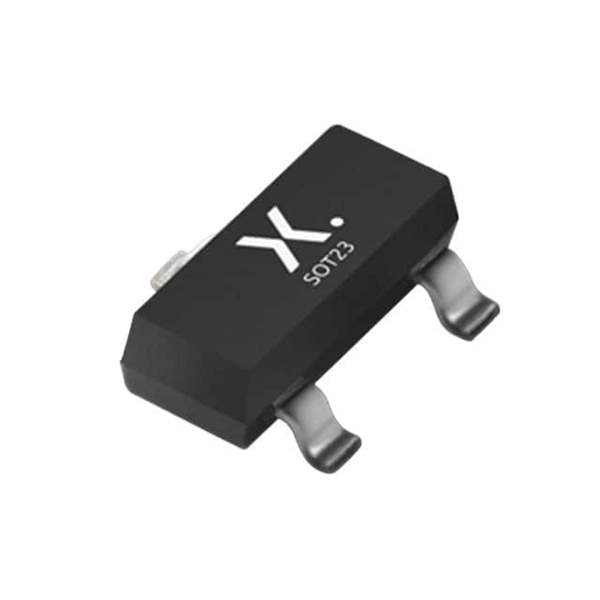

Same model may have multiple batches, images only for reference.

BC817-40,235

Part No BC817-40,235
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 45V 500MA TO236AB
Datasheet
BC817-40,235 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Bipolar (BJT) Transistor NPN 45 V 500 mA 100MHz 250 mW Surface Mount TO-236AB
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Operating Temperature Range 150°C (TJ)
Mounting Surface Mount
Package TO-236-3, SC-59, SOT-23-3
Case / Package TO-236AB
Family Name BC817
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Other Part Number BC817-40 /T3, 568-7993-1, 568-7993-2, 1727-6186-1, BC817-40 /T3-ND, 568-7993-6, BC817-40,235-ND, 1727-6186-6, 568-7993-6-ND, 1727-6186-2, 568-7993-1-ND, 568-7993-2-ND, 933628640235, BC817-40235
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912928-BC817-40,235
Ultra Librarian 3D Model Ultra Librarian BC817-40,235 CAD Model

Description

The Nexperia USA Inc. BC817-40,235 is a bipolar (BJT) transistor NPN with a maximum collector-emitter voltage of 45V and a maximum collector current of 500mA.

  • Manufacturer: Nexperia USA Inc.
  • Part Number: BC817-40,235
  • Type: Bipolar (BJT) Transistor NPN
  • Maximum Collector-Emitter Voltage: 45V
  • Maximum Collector Current: 500mA
  • Collector-Emitter Saturation Voltage: 355mV @ 500mA and 5A (Low)
  • Gain (hFE): 250 @ 2A and 2V (Typical)
  • Mounting: Surface Mountable
  • Package: TO-236AB
  • Series: BC817
  • Category: Discrete Semiconductor Product
  • Application: Automotive
  • Compliance: AEC-Q101
  • Operating Temperature: Up to 150°C (TJ)
  • Quantity: Reel of 10,000 units
  • REACH: Unaffected
  • HTSUS: 8541.21.0075
