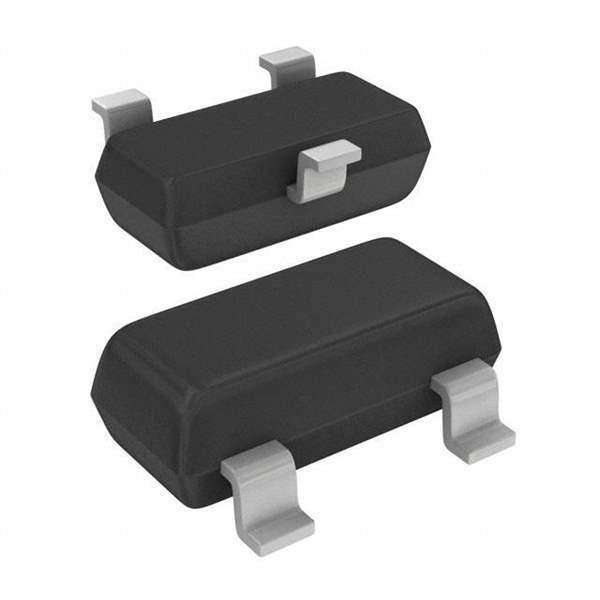

BAS70-04,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS70-04,215

Part No BAS70-04,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description Rectifier Diode Schottky 0.07A Automotive 3-Pin SOT-23 T/R / DIODE ARRAY SCHOTTKY 70V SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 15mA
Current - Reverse Leakage @ Vr 10μA @ 70V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package TO-236AB (SOT23)
Win Source Part Number 1022103-BAS70-04,215
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Family Name BAS70-04
Introduction Date March 19, 1996
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian BAS70-04,215 CAD Model

Description

The BAS70-04,215 is a high popularity component manufactured by Nexperia USA Inc.

  • Manufacturer: Nexperia USA Inc.
  • Product Name: BAS70-04,215
  • Win Source Part Number: 1022103-BAS70-04,215
  • Supply and Demand Status: Sufficient
  • Type: Schottky Diode
  • Diode Configuration: 1 pair series connection
  • Package: TO-236AB (SOT23)
  • Maximum Junction Temperature: 150°C
  • Current - Average Rectified (Io) (per diode): 70mA (DC)
  • Manufacturer Homepage: Not Available
