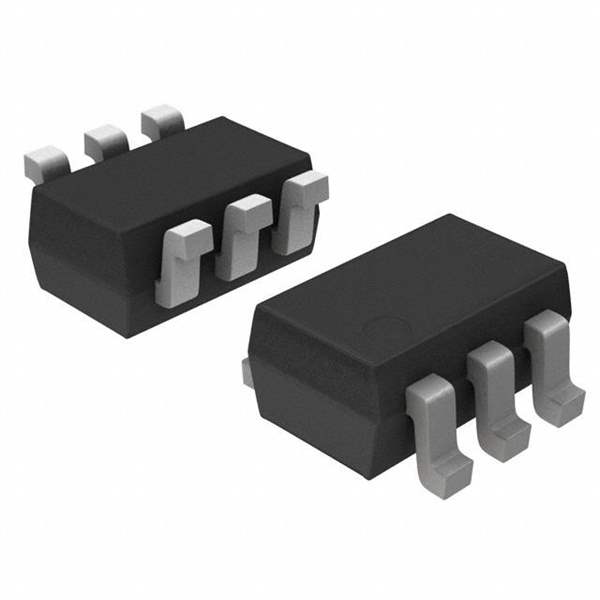

BAS40-04W,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAS40-04W,115

Part No BAS40-04W,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description Schottky Diodes & Rectifiers General-purpose dual Schottky diode
Datasheet
BAS40-04W,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) (per Diode) 120mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 40mA
Current - Reverse Leakage @ Vr 10μA @ 40V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SOT-323-3
Win Source Part Number 1022078-BAS40-04W,115
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BAS40-04W,115 CAD Model

Description

The Nexperia BAS40-04W,115 is a Schottky diode with a maximum DC reverse voltage of 40V and a forward voltage of 1V @ 40mA.

  • Maximum DC Reverse Voltage: 40V
  • Forward Voltage: 1V @ 40mA
  • Current Reverse Leakage: 10μA @ 40V
  • Mounting Technology: SMD
  • Package: SOT-323-3
  • Diode Configuration: 1 pair series connection
  • Average Rectified Current: 120mA (DC)
  • Operating Temperature: -65°C to 150°C
  • Category: Discrete Semiconductor Products
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Limited
