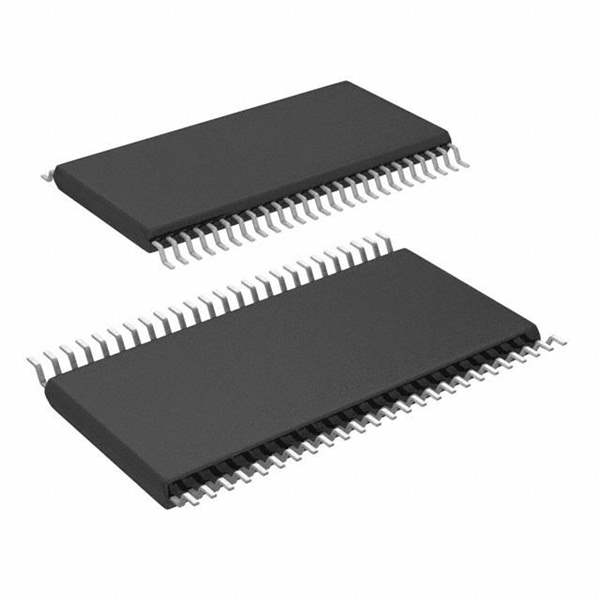

74LVC16244ADGG,118 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC16244ADGG,118

Part No 74LVC16244ADGG,118
Manufacturer Nexperia USA Inc.
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description Buffers & Line Drivers 16-bit buffer/line driver; 5 V input/output tolerant; 3-state
Datasheet
74LVC16244ADGG,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 4
Number of Bits per Element 4
Output Type Push-Pull
Current - Output High, Low 24mA, 24mA
Supply Voltage - Operating 1.2 V to 3.6 V
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 48-TSSOP
Win Source Part Number 1009147-74LVC16244ADGG,118
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 74LVC16244ADGG,118 CAD Model

Description

The 74LVC16244ADGG,118 is a non-inverting buffer manufactured by Nexperia USA Inc.

  • Output: Push-pull
  • Elements: Four
  • Bits per element: Four
