74HC574D,653 Nexperia USA Inc. 74HC574D,653 Real Image

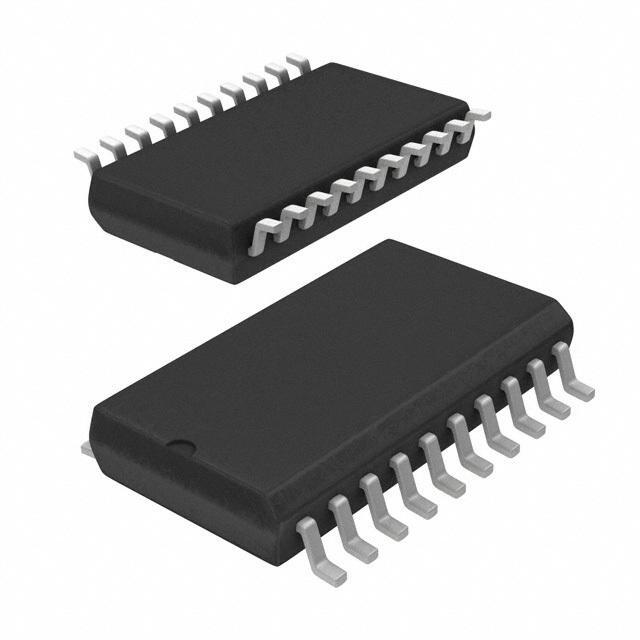

74HC574D,653 Nexperia USA Inc. 74HC574D,653 Real Image
Same model may have multiple batches, images only for reference.

74HC574D,653

Part No 74HC574D,653
Manufacturer Nexperia USA Inc.
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG SNGL 20SOIC
Datasheet
74HC574D,653 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Purpose Standard
Type D-Type
Output Type Tri-State, Non-Inverted
Number of Elements 1
Number of Bits per Element 8
Max Frequency 133MHz
Max Propagation Delay @ V, Max CL 26ns @ 6V, 50pF
Trigger Type Positive Edge
Current - Output High, Low 7.8mA, 7.8mA
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent 8μA
Input Capacitance 3.5pF
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Dimension 20-SOIC (0.295", 7.50mm Width)
Win Source Part Number 1008508-74HC574D,653
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 74HC574D,653 CAD Model

Description

The 74HC574D,653 is a D-type IC with a single element and eight bits per element. Manufactured by Nexperia USA Inc.

  • Type: D-Type
  • Elements: Single
  • Bits per element: Eight
  • Output Type: Tri-State, Non-Inverted
  • Maximum Propagation Delay: 26ns @ 6V and 50pF
  • Supply Voltage Range: 2V to 6V
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface-Mount Technology (SMT)
  • Package: 20-SOIC (0.295", 7.50mm Width)
  • Quiescent Current: 8μA
  • Output Current: 7.8mA
  • Application: Standard
