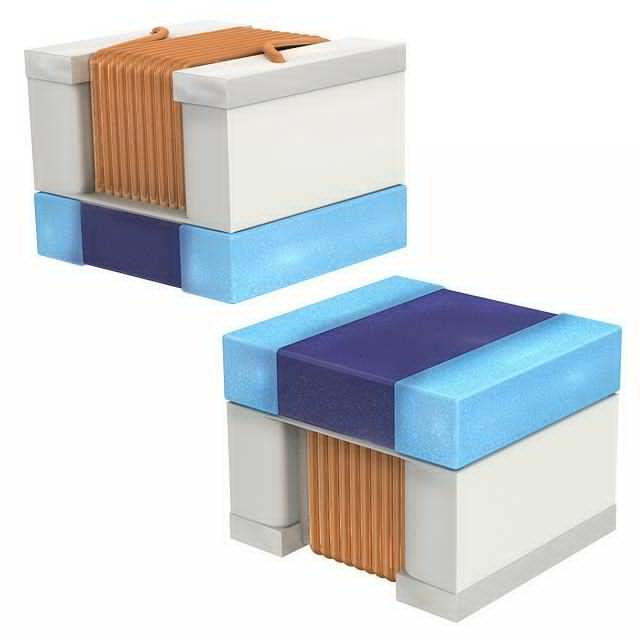

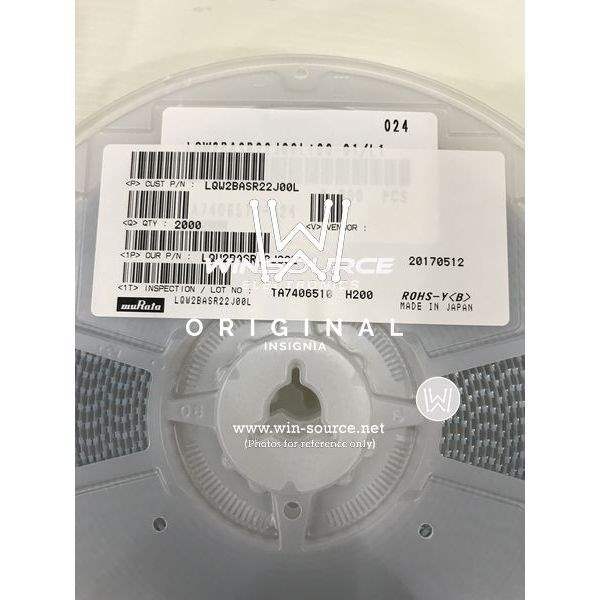

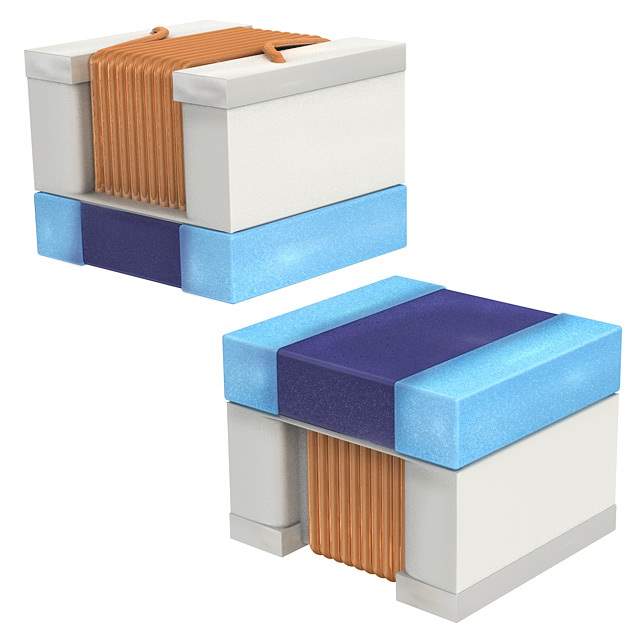

LQW2BASR22J00L Murata Electronics North America LQW2BASR22J00L Real Image LQW2BASR22J00L label picture
LQW2BASR22J00L Murata Electronics North America LQW2BASR22J00L Real Image LQW2BASR22J00L label picture
Same model may have multiple batches, images only for reference.

LQW2BASR22J00L

Part No LQW2BASR22J00L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor RF Chip Unshielded Wirewound 0.22uH 5% 100MHz 50Q-Factor Non Magnetic 0.4A 0.7Ohm DCR 0805 T/R / FIXED IND 220NH 400MA 700 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Air
Inductance 220nH
Tolerance ±5%
Current Rating 400mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 50 @ 250MHz
Frequency - Self Resonant 820MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100MHz
Mounting SMD (SMT)
Case / Package 0805 (2015 Metric)
Height - Seated (Max) 0.060" (1.52mm)
Win Source Part Number 041224-LQW2BASR22J00L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LQW2BAS_00
Introduction Date May 06, 2012
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LQW2BASR22J00L CAD Model

Description

The Murata Electronics North America LQW2BASR22J00L is a wirewound inductor with the following specifications:

  • Current Rating: 400mA
  • Inductance: 220nH
  • Height: 0.060" (1.52mm)
  • Mounting Type: Surface-mounted
  • Tolerance: ±5%
  • Core Material: Air
  • Q @ Freq: 50 @ 250MHz
  • Self-Resonant Frequency: 820MHz
  • DC Resistance (DCR): 700 mOhm Max
  • Operating Temperature Range: -55°C to 125°C
  • Package: 0805 (2015 Metric)
  • Status: Active
