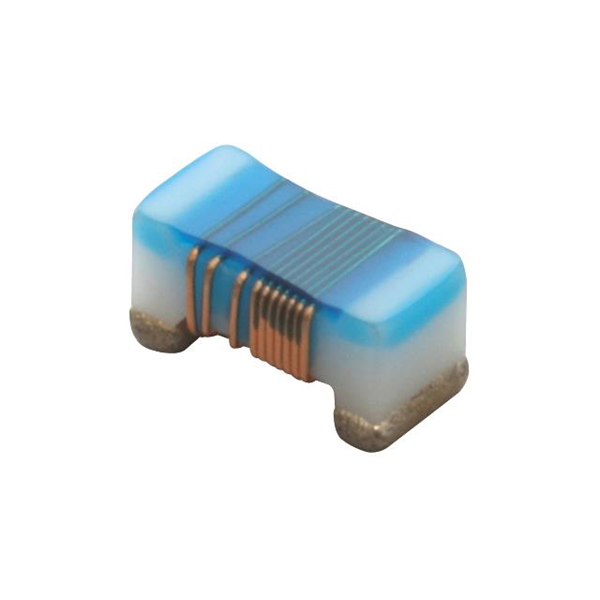

LQW18AN24NJ00D Real Image
Same model may have multiple batches, images only for reference.

LQW18AN24NJ00D

Part No LQW18AN24NJ00D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 24NH 500MA 210 MOHM / Inductor RF Chip Unshielded Wirewound 0.024uH 5% 100MHz 40Q-Factor Non Magnetic 0.5A 0.21Ohm DCR 0603 T/R
Datasheet
LQW18AN24NJ00D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQW18
Packaging Reel package
Type Wirewound
Material - Core Non-Magnetic
Inductance 24nH
Tolerance ±5%
Current Rating 500mA
Shielding Unshielded
DC Resistance (DCR) 210 mOhm Max
Q @ Freq 40 @ 250MHz
Frequency - Self Resonant 3.8GHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100MHz
Mounting SMD
Package 0603
Manufacturer Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 780065-LQW18AN24NJ00D
Popularity Medium
Supply and Demand Status Limited
Family Name LQW18AN_00
Introduction Date July 04, 2005
ECCN EAR99
Country of Origin Japan, Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQW18AN24NJ00D CAD Model

Description

The Murata Electronics North America LQW18AN24NJ00D is an inductor coil with a wirewound type design.

  • Core Material: non-magnetic
  • Tolerance: ±5%
  • Inductance: 24nH
  • DC Resistance (DCR): 210 mOhm Max
  • Operating Temperature Range: -55°C to 125°C
  • Frequency Self-Resonant: 3.8GHz
  • Shielded: Yes
  • Mounting: SMD
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.039" (1.00mm)
  • Alternative Parts: LQW18AN24NJ0ZJ, LQW18AN24NJ0ZD, LQW18AN24NJ0ZB, LR312RAA24NGLH
  • Introduction Date: July 04, 2005
  • Estimated EOL Date: 2027
  • ECCN: EAR99
