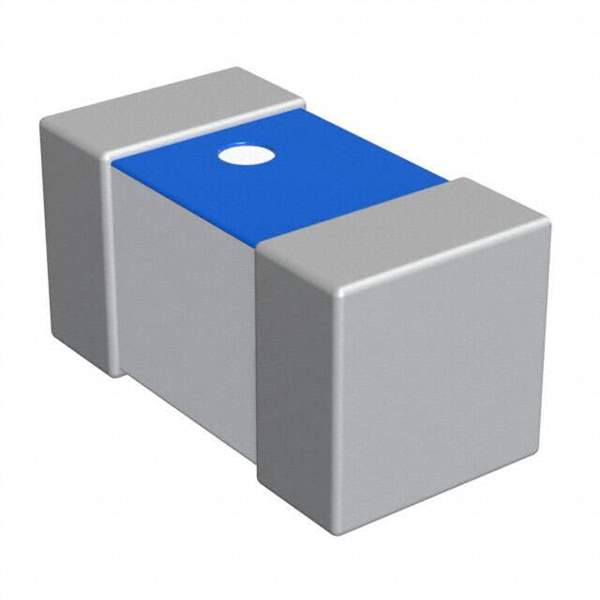

LQP03TN8N2H02D Real Image
Same model may have multiple batches, images only for reference.

LQP03TN8N2H02D

Part No LQP03TN8N2H02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor RF Chip Unshielded Thin Film 0.0082uH 3% 500MHz 14Q-Factor Non Magnetic 0.25A 0.7Ohm DCR 0201 T/R / FIXED IND 8.2NH 250MA 700 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 8.2nH
Tolerance ±3%
Current Rating 250mA
DC Resistance (DCR) 700 mOhm Max
Q @ Freq 14 @ 500MHz
Frequency - Self Resonant 3.6GHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0201 (0603 Metric)
Height - Seated (Max) 0.013" (0.33mm)
Win Source Part Number 020047-LQP03TN8N2H02D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LQP03TN_02
Introduction Date August 12, 2014
ECCN EAR99
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian LQP03TN8N2H02D CAD Model

Description

The Murata Electronics North America LQP03TN_02 is a thin film inductor with the following specifications:

  • Current Rating: 250mA
  • Inductance: 8.2nH
  • Core Material: Non-magnetic
  • Tolerance: ±3%
  • Q @ Freq: 14 @ 500MHz
  • Frequency Self-Resonant: 3.6GHz
  • DC Resistance (DCR): 700 mOhm Max
  • Operating Temperature Range: -55°C to 125°C
  • Supply and Demand Status: Balanced
  • Estimated End-of-Life (EOL) Date: 2030
