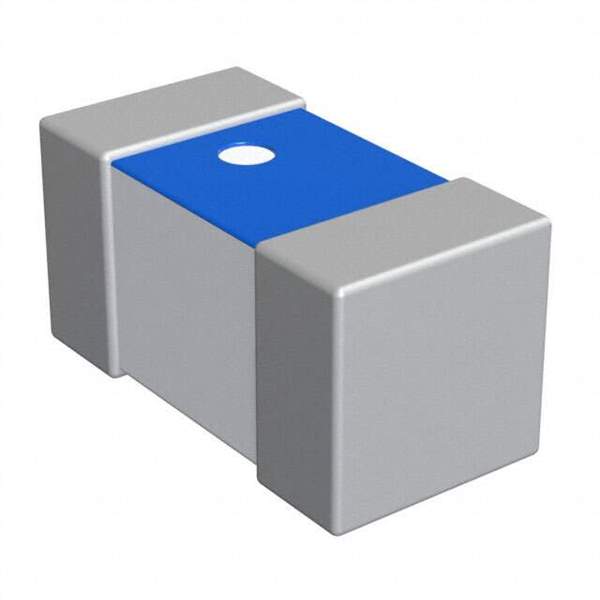

LQP03TN2N6B02D Real Image
Same model may have multiple batches, images only for reference.

LQP03TN2N6B02D

Part No LQP03TN2N6B02D
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 2.6NH 500MA 200 MOHM
Datasheet
LQP03TN2N6B02D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Non-Magnetic
Inductance 2.6nH
Tolerance ±0.1nH
Current Rating 500mA
DC Resistance (DCR) 200 mOhm Max
Q @ Freq 14 @ 500MHz
Frequency - Self Resonant 10GHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 500MHz
Mounting SMD (SMT)
Case / Package 0201 (0603 Metric)
Height - Seated (Max) 0.013" (0.33mm)
Win Source Part Number 1057325-LQP03TN2N6B02D
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LQP03TN2N6B02D CAD Model

Description

The Murata Electronics North America LQP03TN2N6B02D is a thin film inductor. LQP03TN2N6B02D is designed by Murata Electronics North America.

  • Current Rating: 500mA
  • Inductance: 2.6nH
  • Core Material: non-magnetic
  • Tolerance: ±0.1nH
  • Q @ Freq: 14 @ 500MHz
  • Self-Resonant Frequency: 10GHz
  • Mounting: surface mount technology (SMT)
  • Maximum Seated Height: 0.013" (0.33mm)
  • Case: 0201 (0603 Metric)
  • Packaging: reel
  • Product Status: active
  • Temperature Range: -55°C to 125°C
