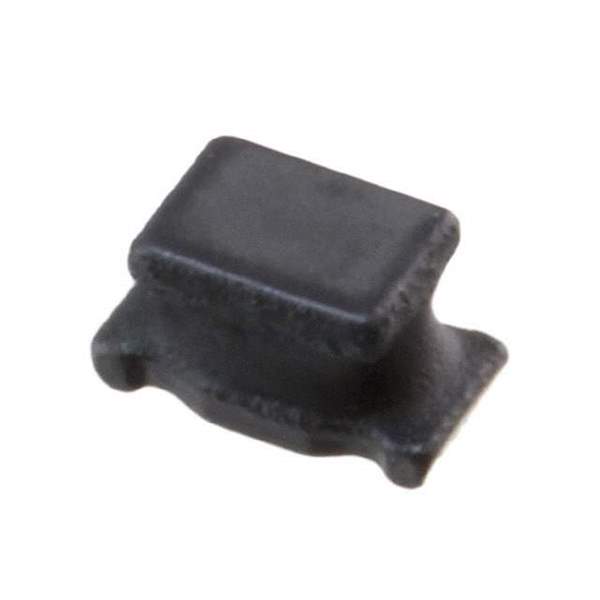

LQH31CN101K03L Real Image
Same model may have multiple batches, images only for reference.

LQH31CN101K03L

Part No LQH31CN101K03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Power Chip Unshielded Wirewound 100uH 10% 1MHz Ferrite 0.08A 15.6Ohm DCR 1206 T/R / FIXED IND 100UH 80MA 12 OHM SMD
Datasheet
LQH31CN101K03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±10%
Current Rating 80mA
DC Resistance (DCR) 15.6 Ohm Max
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1206
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 099502-LQH31CN101K03L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LQH31CN_03
Introduction Date February 23, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LQH31CN101K03L CAD Model

Description

The Murata Electronics North America 099502-LQH31CN101K03L is a wirewound inductor with the following specifications:

  • Inductance: 100μH
  • Current Rating: 80mA
  • Tolerance: ±10%
    • DC Resistance (DCR): 15.6 Ohm Max
  • Self-Resonant Frequency: 7MHz
  • Core Material: Ferrite
  • Operating Temperature Range: -40°C to 85°C
  • Package: 1206
  • Mounting Type: SMD (SMT)
  • Status: Active, High Popularity, Limited Supply and Demand
