Overview of MIC5205-5.0YM5-TR from Microchip Technology

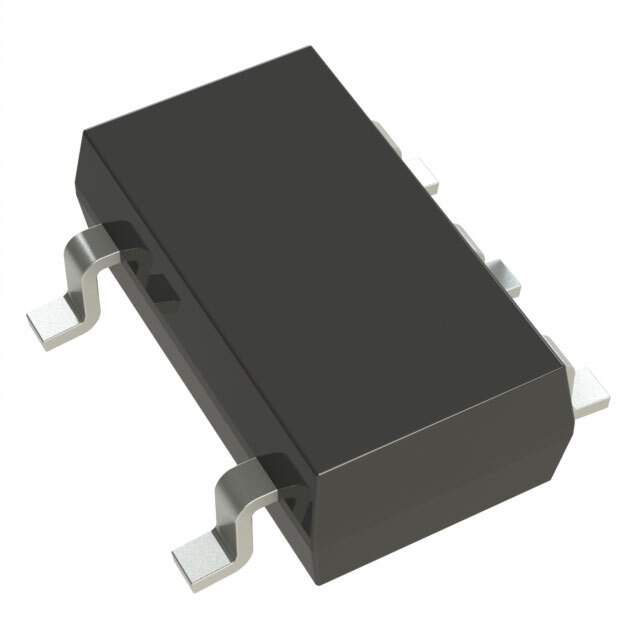

The MIC5205-5.0YM5-TR is a highly reliable voltage regulator from Microchip Technology, designed to deliver a fixed output voltage of 5.0V with high accuracy. This component is part of the MIC5205 series, which is known for its low dropout voltage and low noise performance, making it an excellent choice for sensitive electronic applications. The MIC5205-5.0YM5-TR comes in a compact SOT-23-5 package, which is ideal for space-constrained applications.

Key Features

• Output Voltage: The device provides a fixed output voltage of 5.0V, which is suitable for a wide range of digital and analog circuits.
• Low Dropout Voltage: It offers a low dropout voltage, typically 165mV at 150mA, ensuring efficient operation even when the input voltage is close to the output voltage.
• High Output Accuracy: With an output voltage accuracy of ±2%, the MIC5205-5.0YM5-TR ensures reliable and consistent performance for precision applications.
• Output Current: The regulator can supply up to 150mA of output current, catering to moderate power requirements.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and current limit features to protect against excessive temperature and current conditions.
• Low Noise: This voltage regulator is designed for low-noise operation, making it suitable for noise-sensitive applications such as RF circuits and audio amplifiers.
• Stability: The MIC5205-5.0YM5-TR is stable with low-ESR ceramic capacitors, providing improved transient response and minimizing output noise.

Applications

The MIC5205-5.0YM5-TR is versatile and can be used in various applications, including:

• Battery-powered devices
• Portable electronics
• Microcontroller power supplies
• Peripheral power supplies
• Reference voltage sources

With its robust design and reliable performance, the MIC5205-5.0YM5-TR from Microchip Technology is an excellent choice for designers looking for a stable and efficient power management solution.
