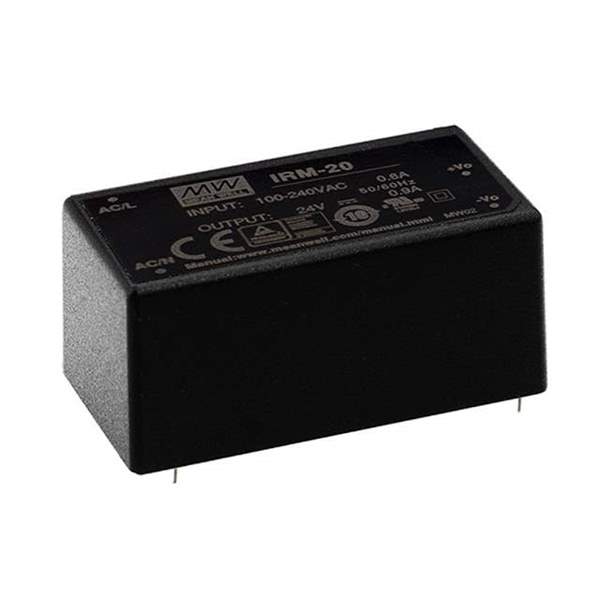

IRM-20-12 Real Image
Same model may have multiple batches, images only for reference.

IRM-20-12

Part No IRM-20-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 22W / Enclosed AC DC Converters 1 Output 12V 1.8A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Datasheet
IRM-20-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr MEAN WELL USA Inc.
Series IRM-20 (20W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 12V
Current - Output (Max) 1.8A
Power (Watts) 22 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -30°C ~ 70°C (With Derating)
Efficiency 84%
Mounting Type Through Hole
Package / Case 4-DIP Module
Size / Dimension 2.06" L x 1.07" W x 0.94" H (52.4mm x 27.2mm x 24.0mm)
Approval Agency CB, CE, cURus, TUV
Line Regulation ±0.3%
Load Regulation ±0.5%
Base Product Number IRM-20
Standard Package 240
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Win Source Part Number 1348531-IRM-20-12
Ultra Librarian 3D Model Ultra Librarian IRM-20-12 CAD Model

Description

The IRM-20 (20W) series of enclosed AC-DC converters from MEAN WELL USA Inc. is designed for ITE (Commercial) applications.

  • Input Voltage: 85 ~ 264 VAC and 120 ~ 370 VDC
  • Output Voltage: 12V
  • Maximum Output Current: 1.8A
  • Power Rating: 22W
  • Efficiency: 84%
  • Line Regulation: ±0.3%
  • Load Regulation: ±0.5%
  • Package: 4-DIP module
  • Operating Temperature: -30°C ~ 70°C (With Derating)
  • Approvals: CB, CE, cURus, TUV
  • ECCN: EAR99
  • Standard Package: 240 units
