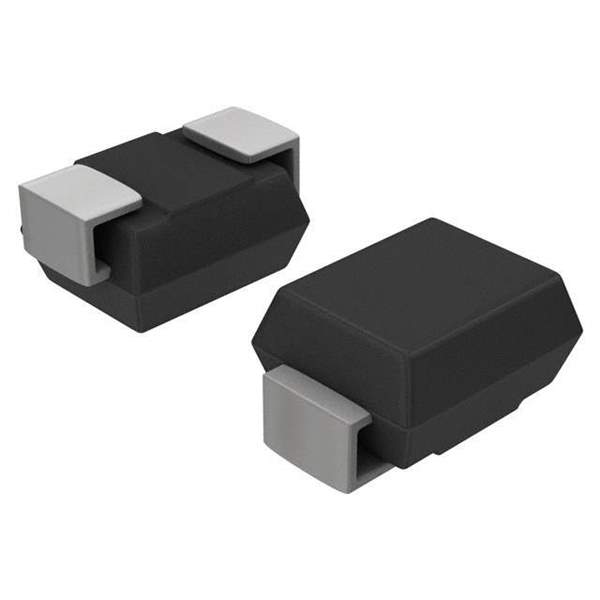

SZ1SMB28CAT3G Real Image
Same model may have multiple batches, images only for reference.

SZ1SMB28CAT3G

Part No SZ1SMB28CAT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 28VWM 45.4VC SMB
Datasheet
SZ1SMB28CAT3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 28V
Minimum Breakdown Voltage 31.1V
Max Clamping Voltage 45.4V
Peak Pulse Current(Ippm) 13.2A
Power Dissipation - Pd 600W
Applications Automotive
Capacitance @ Frequency 310pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMB
Win Source Part Number 1002636-SZ1SMB28CAT3G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SZ1SMB28CAT3G CAD Model

Description

The Littelfuse Inc. 1002636-SZ1SMB28CAT3G is a bidirectional zener diode designed for use in automotive applications.

  • Type: Bidirectional Zener Diode
  • Application: Automotive
  • Capacitance: 310pF @ 1MHz
  • Stand-Off Voltage: 28V
  • Minimum Breakdown Voltage: 31.1V
  • Maximum Clamping Voltage: 45.4V
  • Peak Pulse Current: 13.2A
  • Power Dissipation: 600W
  • Mounting: SMD (SMT)
  • Temperature Range: -65°C to 150°C (TJ)
  • Supply and Demand Status: Balanced
  • Package: Reel - TR
