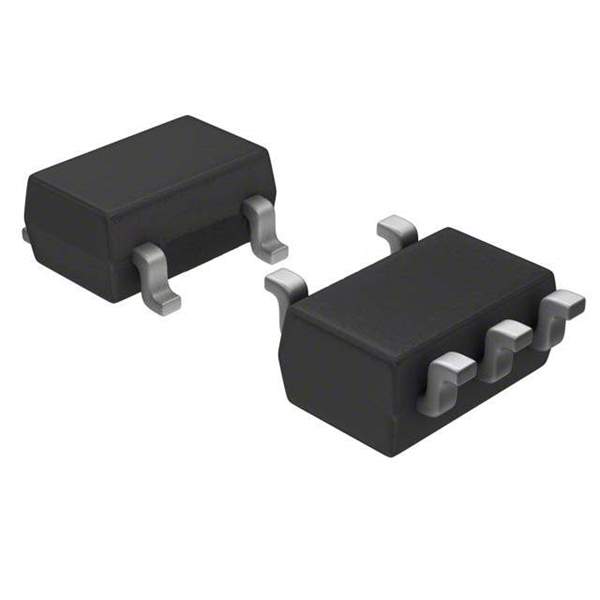

The MAX40203AUK+T from Maxim Integrated is a high-performance, single-pole, single-throw (SPST) analog switch designed for precision and efficiency in a wide range of applications. This compact switch is part of the MAX40203 series and is available in a small 5-pin SOT23 package, making it ideal for space-constrained applications.

Key Features

• Low On-Resistance: The device features a low on-resistance (RON) of typically 0.6Ω, which minimizes signal distortion and ensures high signal integrity.
• Low Power Consumption: With its low power consumption, the MAX40203AUK+T is suitable for battery-powered devices, helping to extend battery life and reduce overall power costs.
• Single Supply Operation: The switch operates from a single 1.6V to 3.6V power supply, providing design flexibility and compatibility with a variety of low-voltage systems.
• Fast Switching Times: Fast switching times (tON and tOFF) enable quick signal routing and are essential for time-sensitive applications.
• High Current Handling: The device can handle continuous current up to 300mA, making it suitable for driving moderate loads.
• ESD Protection: It comes with built-in electrostatic discharge (ESD) protection, enhancing the durability and reliability of the component in harsh environments.

Applications

The versatility of the MAX40203AUK+T makes it an excellent choice for a variety of applications, including:

• Sample and Hold Circuits
• Battery-Powered Systems
• Audio and Video Signal Routing
• Communication Systems
• Data Acquisition Systems
• Portable Instruments
• Medical Equipment

Product Summary

The MAX40203AUK+T is a testament to Maxim Integrated's commitment to providing high-quality, reliable components for the electronics industry. With its low on-resistance, low power consumption, and fast switching capabilities, this analog switch is engineered to meet the needs of modern electronic systems, delivering performance and efficiency without compromising on space.
