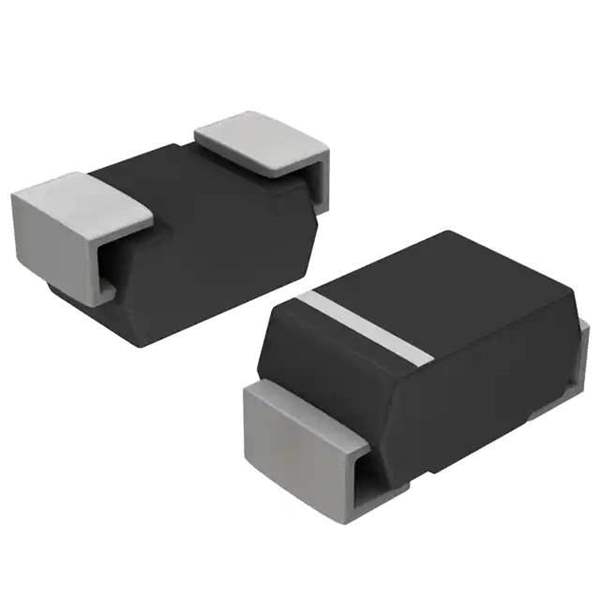

SZ1SMA33CAT3G Real Image
Same model may have multiple batches, images only for reference.

SZ1SMA33CAT3G

Part No SZ1SMA33CAT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC SMA
Datasheet
SZ1SMA33CAT3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, SZ1SMA
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 33V
Voltage - Breakdown (Min) 36.7V
Voltage - Clamping (Max) @ Ipp 53.3V
Current - Peak Pulse (10/1000µs) 7.5A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency 190pF @ 1MHz
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Base Product Number 1SMA
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 898732-SZ1SMA33CAT3G
Ultra Librarian 3D Model Ultra Librarian SZ1SMA33CAT3G CAD Model

Description

The SZ1SMA33CAT3G is a bidirectional transient voltage suppressor (TVS) diode designed for automotive applications.

  • Series: SZ1SMA
  • Compliance: AEC-Q101
  • Reverse Standoff Voltage: 33V
  • Breakdown Voltage: 36.7V
  • Peak Pulse Power Rating: 400W
  • Device Type: Surface Mount Device
  • Package: DO-214AC (SMA)
  • Manufacturer: Littelfuse Inc.
  • Product Status: Active
