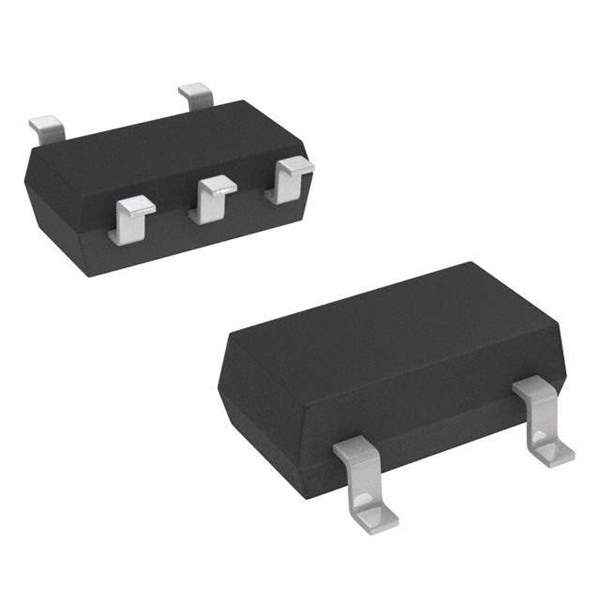

SP0504BAJTG Real Image
Same model may have multiple batches, images only for reference.

SP0504BAJTG

Part No SP0504BAJTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 8.5VC SC70-5
Datasheet
SP0504BAJTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V (Max)
Max Clamping Voltage 8.5V
Applications General Purpose
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SC-70-5
Win Source Part Number 030563-SP0504BAJTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP0504BAJTG CAD Model

Description

This electronic component is manufactured by Littelfuse Inc. and has a Win Source Part Number of 030563-SP0504BAJTG.

  • Type: zener type
  • Channels: 4 unidirectional channels
  • Application: used for general purpose applications
  • Mounting: mounted using SMD (SMT)
  • Category: Circuit Protection
  • Supply and demand status: balanced
  • Temperature Range: -40°C to 85°C (TA)
  • Case/Package: SC-70-5
  • STAND-OFF Voltage (Vwm): 5.5V (Max)
  • Max Clamping Voltage: 8.5V
  • Peak Pulse Current (Ippm): not specified
  • Power Dissipation (Pd): not specified
