PS2815-1-F3-A CEL
Same model may have multiple batches, images only for reference.

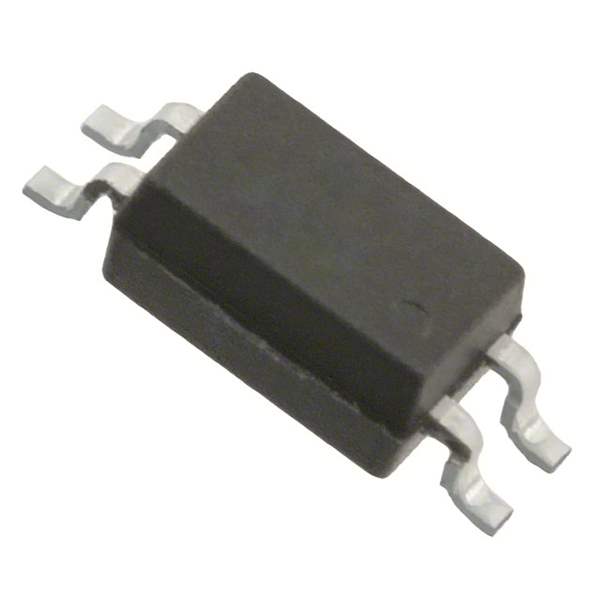

PS2815-1-F3-A

Part No PS2815-1-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 2.5KV TRANS 4-SSOP
Datasheet
PS2815-1-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 100% @ 1mA
Maximum DC Current Transfer Ratio 400% @ 1mA
Rise and Fall Time 4μs, 5μs
Input Type AC, DC
Output Type Transistor
Maximum Output Voltage 40V
Channel Output Current 40mA
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SSOP
Win Source Part Number 062101-PS2815-1-F3-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2815-1-F3-A CAD Model

Description

The PS2815-1-F3-A is an Isolator manufactured by CEL.

  • Product Name: PS2815-1-F3-A
  • Manufacturer: CEL
  • Mounting: SMD (SMT)
  • Type: Transistor
  • Maximum Output Voltage: 40V
  • Channel Output Current: 40mA
  • Isolation Voltage: 2500Vrms
  • Minimum DC Current Transfer Ratio: 100% @ 1mA
  • Supply and Demand Status: Balanced
  • Temperature Range: -55°C to 100°C
  • Rise Time: 4μs
  • Fall Time: 5μs
