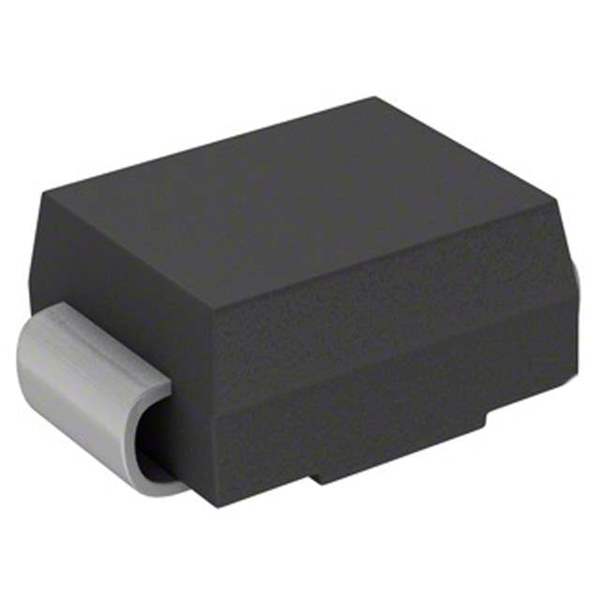

SMBJ120CA Real Image
Same model may have multiple batches, images only for reference.

SMBJ120CA

Part No SMBJ120CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 120VWM 193VC DO214AA
Datasheet
SMBJ120CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SMBJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 120V
Voltage - Breakdown (Min) 133V
Voltage - Clamping (Max) @ Ipp 193V
Current - Peak Pulse (10/1000µs) 3.1A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 668766-SMBJ120CA
Ultra Librarian 3D Model Ultra Librarian SMBJ120CA CAD Model

Description

The Littelfuse Inc. Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes is a high-quality electronic component designed for general-purpose applications.

  • Series: SMBJ
  • Type: Bidirectional
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pieces
  • Reverse Standoff Voltage: 120V
  • Breakdown Voltage: 133V
  • Clamping Voltage: 193V @ Ipp
  • Peak Pulse Power: 600W
  • Mounting Type: Surface Mount
  • Package: DO-214AA, SMB
  • Manufacturer: Littelfuse Inc.
  • California Prop 65: Compliant
