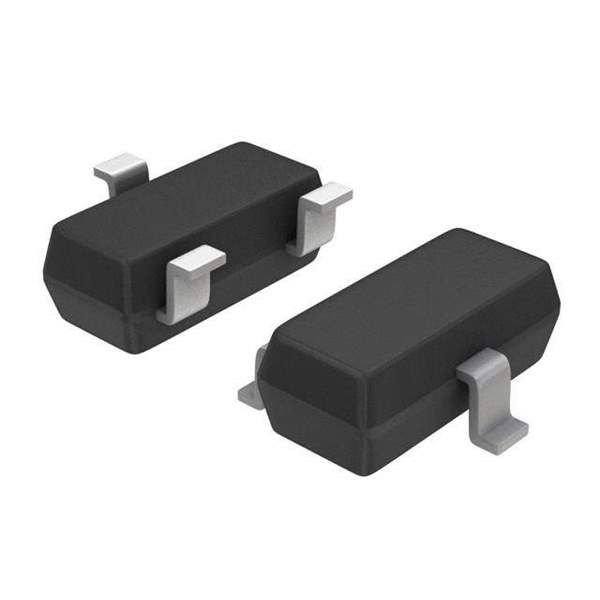

SM12-02HTG Real Image
Same model may have multiple batches, images only for reference.

SM12-02HTG

Part No SM12-02HTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 22.5VC SOT23-3
Datasheet
SM12-02HTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 12V (Max)
Max Clamping Voltage 22.5V
Peak Pulse Current(Ippm) 10A (8/20μs)
Power Dissipation - Pd 400W
Applications Automotive
Capacitance @ Frequency 150pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 1096897-SM12-02HTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SM12-02HTG CAD Model

Description

The SM12-02HTG is a surface mount zener diode manufactured by Littelfuse Inc. It is designed for automotive applications and has a stand-off voltage (Vwm) of 12V (Max).

  • Application: automotive
  • Stand-Off Voltage (Vwm): 12V (Max)
  • Channels: unidirectional, two channels
  • Capacitance: 150pF @ 1MHz
  • Package: SOT-23-3
  • Operating Temperature: -40°C to 125°C
  • Maximum Clamping Voltage: 22.5V
  • Peak Pulse Current Rating: 10A for 8/20μs
  • Power Dissipation: 400W
  • Popularity: medium
  • Compliance: halogen-free regulations
  • Supply and Demand Status: sufficient
