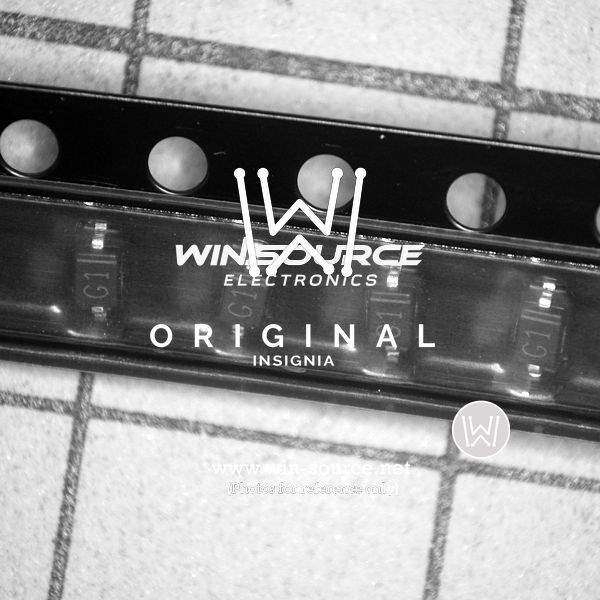

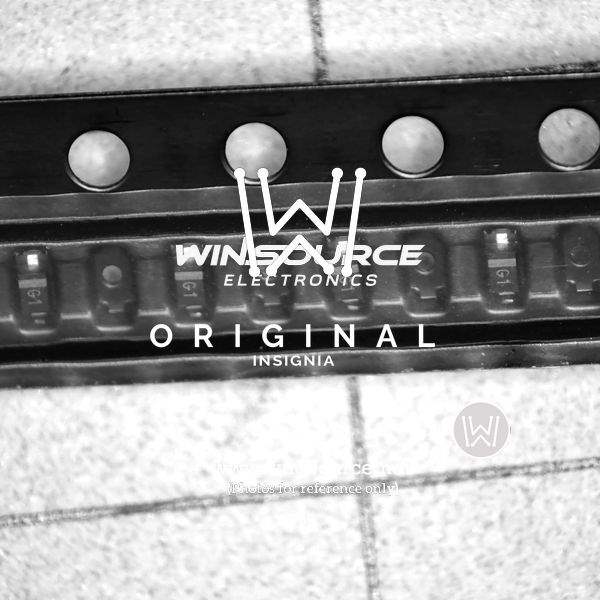

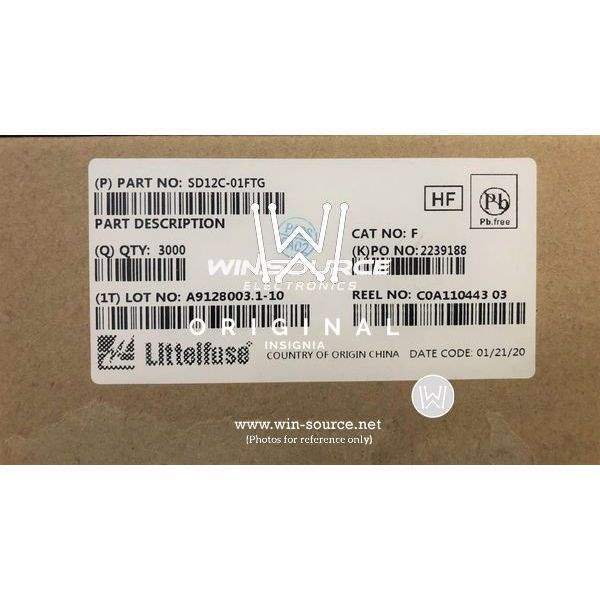

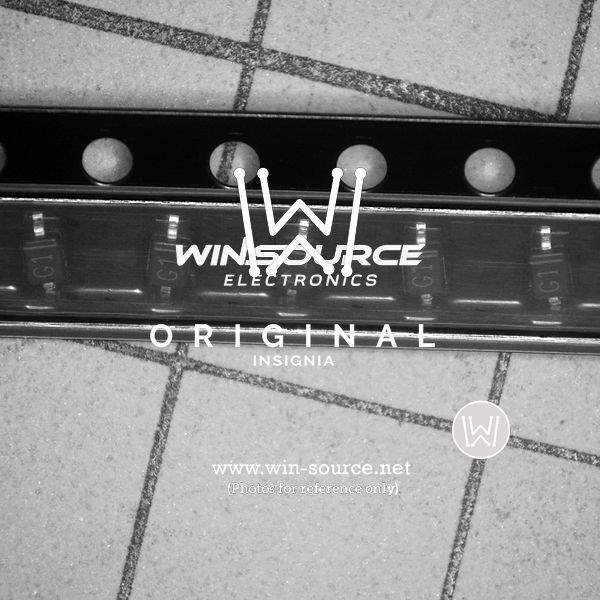

SD12C-01FTG Real Image SD12C-01FTG label picture SD12C-01FTG real image SD12C-01FTG real image11013 SD12C-01FTG real image11014 SD12C-01FTG real image11015 SD12C-01FTG Real Image
SD12C-01FTG Real Image SD12C-01FTG label picture SD12C-01FTG real image SD12C-01FTG real image11013 SD12C-01FTG real image11014 SD12C-01FTG real image11015 SD12C-01FTG Real Image
Same model may have multiple batches, images only for reference.

SD12C-01FTG

Part No SD12C-01FTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 23VC SOD323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V (Max)
Max Clamping Voltage 23V
Peak Pulse Current(Ippm) 17A (8/20μs)
Power Dissipation - Pd 450W
Applications Automotive
Capacitance @ Frequency 100pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1094965-SD12C-01FTG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SD12C-01FTG CAD Model

Description

The SD12C-01FTG is an electronic component manufactured by Littelfuse Inc.

  • Type: Zener Diode
  • Stand-off Voltage (Max): 12V
  • Maximum Clamping Voltage: 23V
  • Peak Pulse Current: 17A (8/20μs)
  • Power Dissipation: 450W
  • Commonly Used In: Automotive applications
  • Supply and Demand Status: Sufficient
