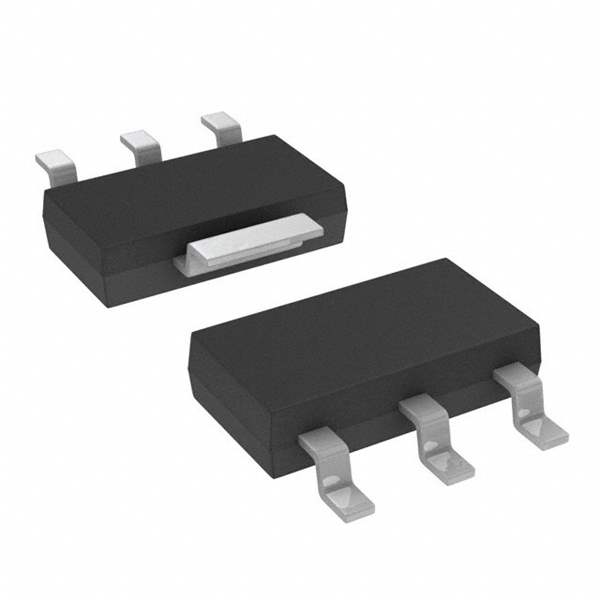

S6002TSRP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

S6002TSRP

Part No S6002TSRP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR 600V 2A SOT223
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Littelfuse Inc.
Series EV
Package Tape & Reel
Product Status Active
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 200 µA
Voltage - On State (Vtm) (Max) 1.5 V
Current - On State (It (AV)) (Max) 1.2 A
Current - On State (It (RMS)) (Max) 2 A
Current - Hold (Ih) (Max) 5 mA
Current - Off State (Max) 5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 22.5A @ 50Hz, 25A @ 60Hz
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223
Base Product Number S6002
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1379716-S6002TSRP
Ultra Librarian 3D Model Ultra Librarian S6002TSRP CAD Model

Description

The S6002TSRP is a sensitive gate SCR (silicon-controlled rectifier) from Littelfuse Inc.

  • Series: EV
  • Packaging: Tape and Reel
  • Voltage Off State: 600V
  • Current On State (It (RMS)): 2A
  • Voltage Gate Trigger (Vgt): 800mV
  • Current Gate Trigger (Igt): 200µA
  • Current Hold (Ih): 5mA
  • On State Voltage (Vtm): 1.5V
  • Maximum On State Current (It (AV)): 1.2A
  • Maximum Off State Current: 5µA
  • Mounting Type: Surface Mount
  • Package: SOT-223
  • Operating Temperature: -40°C to 125°C (TJ)
  • REACH: Unaffected
  • Applications: Controlling Power Flow
