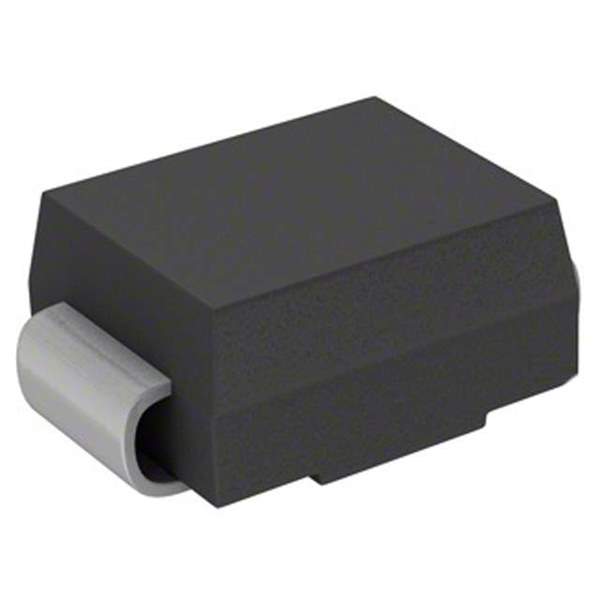

P6SMB7.5A Real Image
Same model may have multiple batches, images only for reference.

P6SMB7.5A

Part No P6SMB7.5A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 6.4VWM 11.3VC DO214AA
Datasheet
P6SMB7.5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series P6SMB
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 6.4V
Voltage - Breakdown (Min) 7.13V
Voltage - Clamping (Max) @ Ipp 11.3V
Current - Peak Pulse (10/1000µs) 54A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 652028-P6SMB7.5A
Ultra Librarian 3D Model Ultra Librarian P6SMB7.5A CAD Model

Description

The 652028-P6SMB7.5A is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection.

  • Series: P6SMB series
  • Package: tape and reel package
  • Voltage Reverse Standoff: 6.4V
  • Minimum Breakdown Voltage: 7.13V
  • Clamping Voltage: 11.3V @ its peak pulse current of 54A
  • Power Rating: 600W
  • Mounting Type: surface mountable
  • Package: DO-214AA (SMB) package
  • Manufacturer: Littelfuse Inc.
  • Status: an active product in Littelfuse's portfolio
  • Suitability: providing reliable protection for various electronic applications.
