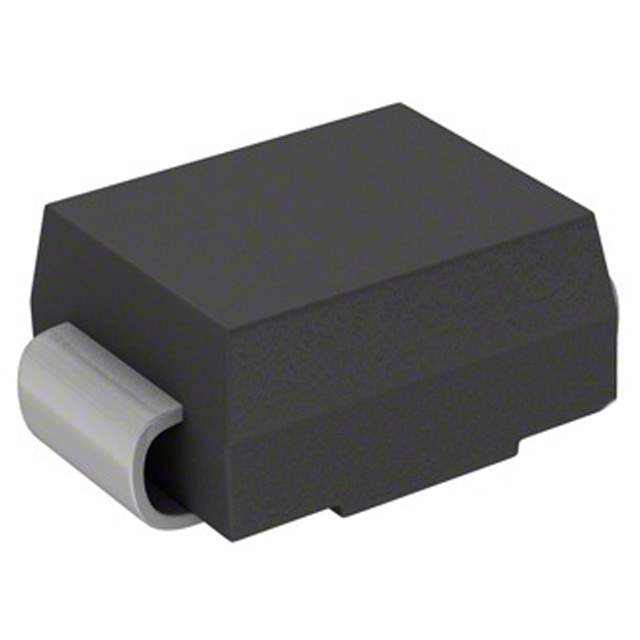

P6SMB43A Central Semiconductor Corp P6SMB43A Real Image P6SMB43A label picture 2 P6SMB43A label picture 6 P6SMB43A real image 2 P6SMB43A label picture 7 P6SMB43A real image 4
P6SMB43A Central Semiconductor Corp P6SMB43A Real Image P6SMB43A label picture 2 P6SMB43A label picture 6 P6SMB43A real image 2 P6SMB43A label picture 7 P6SMB43A real image 4
Same model may have multiple batches, images only for reference.

P6SMB43A

Part No P6SMB43A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 36.8VWM 59.3VC DO214AA
Datasheet
P6SMB43A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series P6SMB
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36.8V
Voltage - Breakdown (Min) 40.9V
Voltage - Clamping (Max) @ Ipp 59.3V
Current - Peak Pulse (10/1000µs) 10.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 652008-P6SMB43A
Ultra Librarian 3D Model Ultra Librarian P6SMB43A CAD Model

Description

The 652008-P6SMB43A is a TVS diode from the P6SMB series.

  • Type: Unidirectional Zener Diode
  • Application: Transient Voltage Suppression
  • Reverse Standoff Voltage: 36.8V
  • Breakdown Voltage: 40.9V
  • Clamping Voltage: 59.3V @ 10.3A
  • Peak Pulse Power Rating: 600W
  • Mounting Type: Surface Mount
  • Package: DO-214AA (SMB)
  • Application: General-Purpose
  • Operating Temperature: -55°C to 150°C
  • REACH: Compliant
  • Product Status: Active
  • Manufacturer: Littelfuse Inc.
