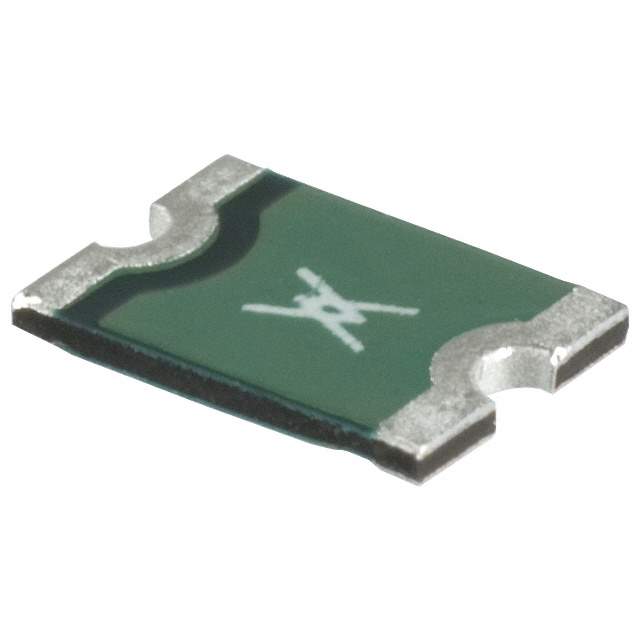

MINISMDC050F-2 Littelfuse Inc. MINISMDC050F-2 Real Image
MINISMDC050F-2 Littelfuse Inc. MINISMDC050F-2 Real Image
Same model may have multiple batches, images only for reference.

MINISMDC050F-2

Part No MINISMDC050F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH .50A RESET FUSE SMD
Datasheet
MINISMDC050F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 150ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 1 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.024" (0.62mm)
Approvals CSA, TUV, UL
Win Source Part Number 023355-MINISMDC050F-2
Family Name MINISMDC
Introduction Date January 01, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Ultra Librarian 3D Model Ultra Librarian MINISMDC050F-2 CAD Model

Description

The Littelfuse Inc. electronic component with Win Source Part Number 023355-MINISMDC050F-2 is a polymeric type circuit protection product used for safety, consumer electronics, portable devices, multimedia, automotive, and industrial applications.

  • Win Source Part Number: 023355-MINISMDC050F-2
  • Type: Polymeric
  • Applications: Safety, consumer electronics, portable devices, multimedia, automotive, and industrial applications
  • Packaging: Reel - TR
  • Voltage Max: 24V
  • Current Max: 100A
  • Current Hold (Ih) (Max): 500mA
  • Current Trip (It): 1A
  • Time to Trip: 150ms
  • Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Resistance - Initial (Ri) (Min): 150 mOhm
  • Resistance - Post Trip (R1) (Max): 1 Ohm
  • Operating Temperature Range: -40°C to 85°C
