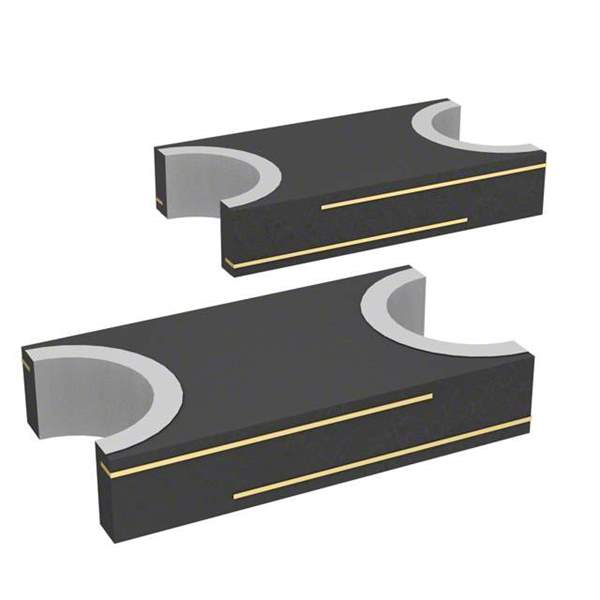

FEMTOSMDC005F-2 Real Image
Same model may have multiple batches, images only for reference.

FEMTOSMDC005F-2

Part No FEMTOSMDC005F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH .05A RESET FUSE SMD / PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 15VDC 40A 0.5W 0.1s 3.8Ohm SMD Solder Pad 0603 T/R Automotive
Datasheet
FEMTOSMDC005F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, femtoSMD
Packaging Reel package
Type Polymeric
Voltage - Max 15V
Current - Max 40A
Current - Hold (Ih) (Maximum) 50mA
Current - Trip (It) 150mA
Time to Trip 100ms
Resistance - Initial (Ri) (Minimum) 3.8 Ohm
Resistance - Post Trip (R1) (Maximum) 30 Ohm
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 0603, Concave
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Thickness (Maximum) 0.033" (0.85mm)
Approvals CSA, UL
Win Source Part Number 772523-FEMTOSMDC005F-2
Popularity Medium
Supply and Demand Status Balance
Family Name FEMTOSMDC
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FEMTOSMDC005F-2 CAD Model

Description

The Littelfuse femtoSMD PolySwitch is a polymeric circuit protection component.

  • Approvals: CSA, UL
  • Package: 0603 concave
  • Maximum Voltage: 15V
  • Maximum Current: 40A
  • Current Trip: 150mA
  • Time to Trip: 100ms
  • Supply and Demand: Balanced
