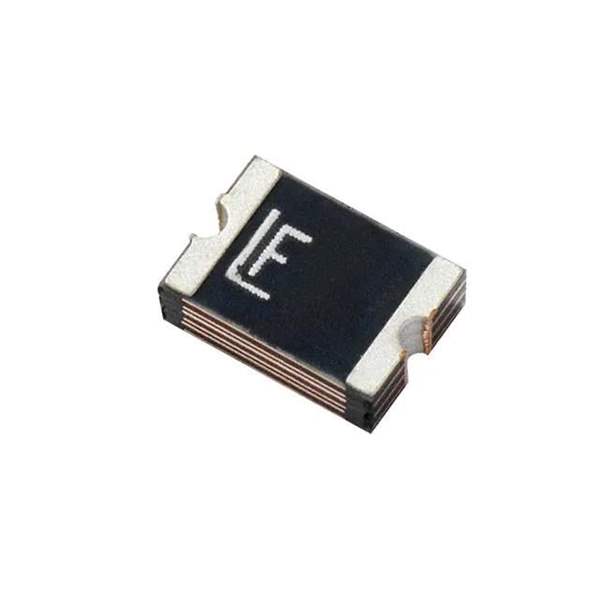

1812L035/60MR Real Image
Same model may have multiple batches, images only for reference.

1812L035/60MR

Part No 1812L035/60MR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 350MA 1812
Datasheet
1812L035/60MR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 1812L
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 350 mA
Current - Trip (It) 700 mA
Current - Max 10 A
Time to Trip 150 ms
Resistance - Initial (Ri) (Min) 400 mOhms
Resistance - Post Trip (R1) (Max) 1.7 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.071" (1.80mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 854199-1812L035/60MR
Ultra Librarian 3D Model Ultra Librarian 1812L035/60MR CAD Model

Description

The 854199-1812L035/60MR is a polymeric PTC resettable fuse from the POLY-FUSE® 1812L series.

  • Type: Polymeric PTC Resettable Fuse
  • Series: POLY-FUSE® 1812L
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
  • Size Dimensions: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Thickness (Max): 0.071" (1.80mm)
  • Maximum Voltage Rating: 60V
  • Maximum Current Rating: 10A
  • Current Hold (Ih): 350mA
  • Current Trip (It): 700mA
  • Time to Trip: 150ms
  • Resistance (Initial): 400mOhms
  • Resistance (Post Trip): 1.7 Ohms
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
  • Product Status: Active
