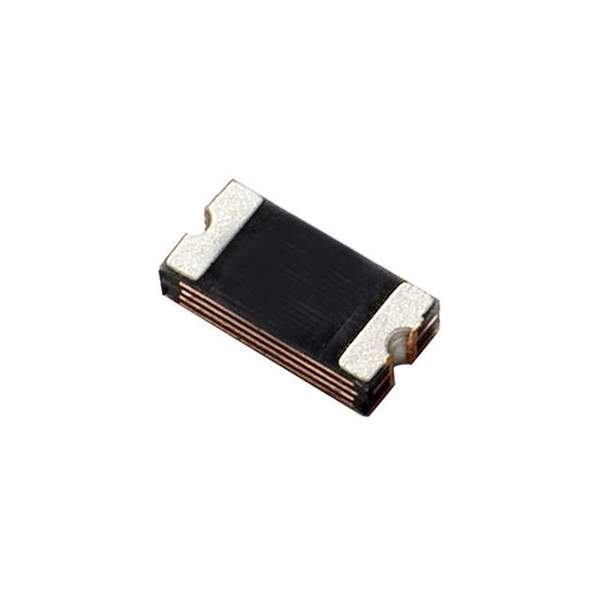

1206L050/24WR Real Image
Same model may have multiple batches, images only for reference.

1206L050/24WR

Part No 1206L050/24WR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 500MA 1206 / Polymeric PTC Resettable Fuse 24V 500 mA Ih Surface Mount 1206 (3216 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, 1206L
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Max 100 A
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 750 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
Thickness (Max) 0.049" (1.25mm)
Approval Agency cURus, TUV
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 18-1206L050/24WRTR,F8474TR-ND,F8474TR,18-1206L050/24WRDKR,18-1206L050/24WRCT
Standard Package 3,000
Win Source Part Number 969616-1206L050/24WR
Ultra Librarian 3D Model Ultra Librarian 1206L050/24WR CAD Model

Description

The Littelfuse Inc. 969616-1206L050/24WR is a PTC resettable fuse designed for use in various applications.

  • Maximum Voltage Rating: 24V
  • Maximum Current Rating: 100A
  • Mounting: Surface mount device
  • Package: 1206 (3216 Metric), Concave
  • Operating Temperature Range: -40°C to 85°C
  • Category: Circuit Protection
  • Status: Active
