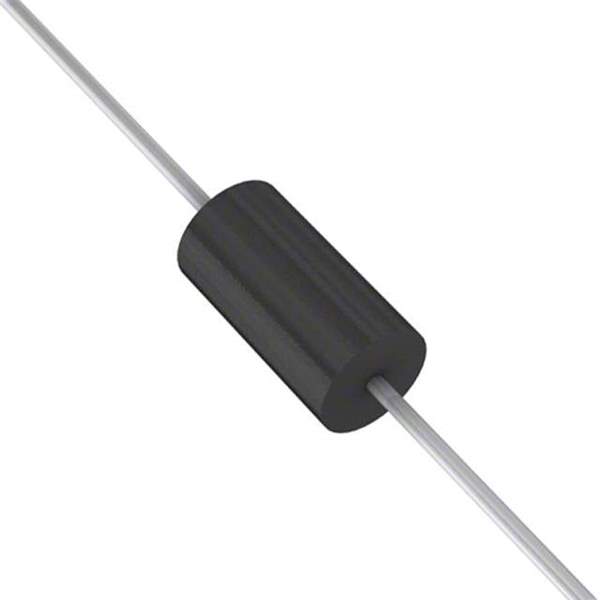

1.5KE130CA

Part No 1.5KE130CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS Diode Single Bi-Dir 111V 1.5KW 2-Pin DO-201 T/R / TVS DIODE 111VWM 179VC AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Standard Package 1
Category Circuit Protection
Family TVS - Diodes
Series 1.5KE
Packaging Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 111V
Voltage - Breakdown (Min) 124V
Voltage - Clamping (Max) @ Ipp 179V
Current - Peak Pulse (10/1000µs) 8.5A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-201AA DO-27 Axial
Manufacturer Device Package DO-201
Catalog 1.5KE Series
Win Source Part Number 051928-1.5KE130CA
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Family Name 1.5KE130CA
Introduction Date March 21, 2004
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 1.5KE130CA CAD Model

Description

1.5KE130CA from Littelfuse Inc. is a TVS diode intended for transient voltage suppression in circuits exposed to surge and electrostatic events. Devices in this category are commonly selected to help protect power rails, industrial controls, telecom interfaces, and other sensitive electronics from short-duration overvoltage conditions that can damage downstream components. Engineers typically consider parts like 1.5KE130CA when designing for improved robustness, field reliability, and reduced maintenance risk in exposed electrical environments. Its value is strongest in protection-oriented designs where surge resilience is a key requirement rather than signal processing or power conversion. Lifecycle status for this part is currently listed as information not available, so design teams should confirm supply continuity directly with Littelfuse Inc. or authorized distribution before committing it into long-life programs. RoHS compliance information is also not available in the provided input and should be verified using the latest manufacturer datasheet, compliance certificate, or distributor environmental documentation.
