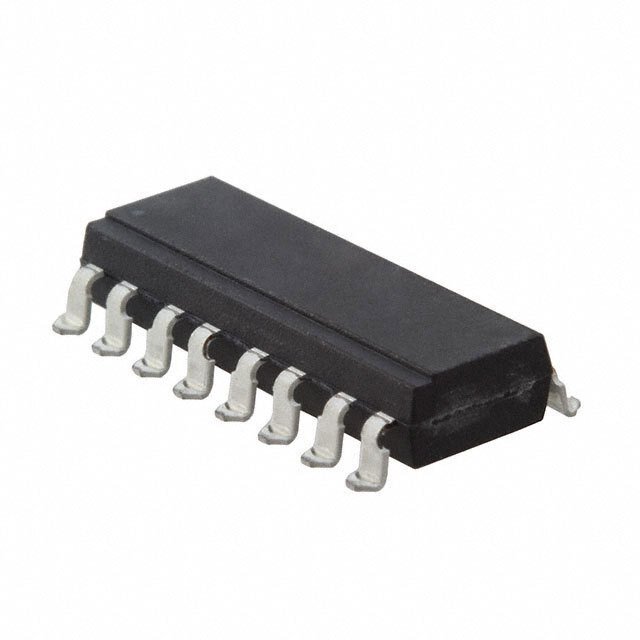

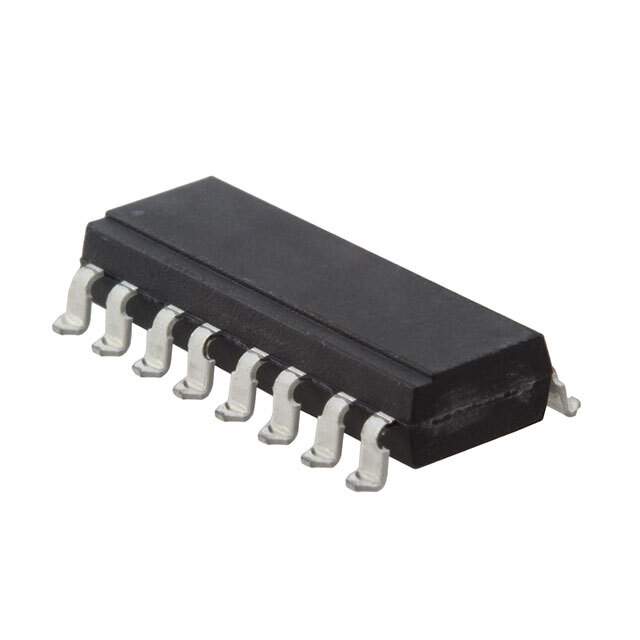

LTV-847S Lite-On Inc. LTV-847S Real Image LTV-847S Real Image
LTV-847S Lite-On Inc. LTV-847S Real Image LTV-847S Real Image
Same model may have multiple batches, images only for reference.

LTV-847S

Part No LTV-847S
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV 4CH TRANS 16-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Status Active
Packaging Tube/Rail
Categories Isolators
Number of Channels 4
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 110°C
Mounting SMD (SMT)
Win Source Part Number 020746-LTV-847S
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Manufacturer Lite-On Inc.
Quantity per package 25
Output Type Transistor
Case / Package 16-SMD
Vce Saturation (Max) 200mV
Ultra Librarian 3D Model Ultra Librarian LTV-847S CAD Model

Description

The Lite-On Inc. 020746-LTV-847S is a high-performance transistor output optocoupler used for DC input applications.

  • Forward Voltage: 1.2V
  • Vce Saturation (Max): 200mV
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Channels: 4
  • Isolation Voltage: 5000Vrms
  • Switching Turn-on and Turn-off Time: Not specified
  • Rise Time: 4µs
  • Fall Time: 3µs
  • Continuous Forward Current: 50mA
  • Maximum Output Voltage: 35V
  • Package: 16-SMD

It is widely used in isolator applications and has a high supply and demand status.
