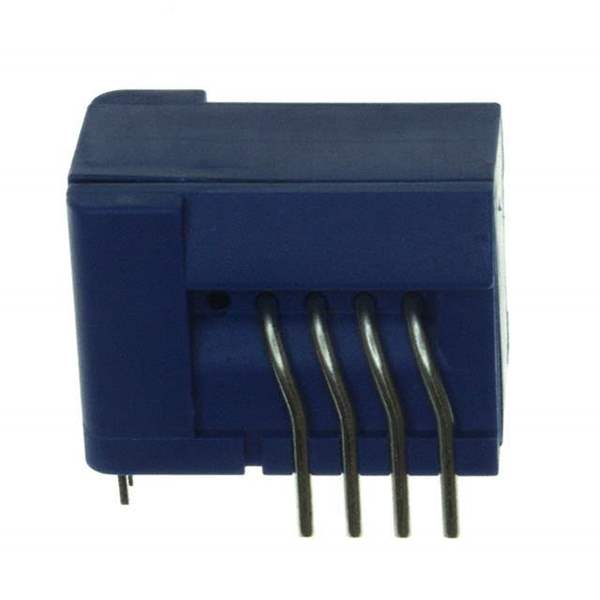

CKSR 25-NP Real Image
Same model may have multiple batches, images only for reference.

CKSR 25-NP

Part No CKSR 25-NP
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT FLUX 25A AC/DC
Datasheet
CKSR 25-NP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 23 Weeks
Features Current Sensor 25A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Manufacturer LEM USA Inc.
Series CKSR
Package Tray
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole
Package Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Part Number 398-1097, 398-1097-5, 398-1097-5-ND, 90.E7.19.000.7, CKSR25NP
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866494-CKSR 25-NP
Ultra Librarian 3D Model Ultra Librarian CKSR 25-NP CAD Model

Description

The CKSR series current sensor module manufactured by LEM USA Inc. is a closed loop bidirectional module designed for current sensing applications.

  • Flux Gate: Yes
  • Current Rating: 25A
  • Number of Channels: 1
  • Operating Temperature: -40°C to 105°C
  • Package: Tray
  • Mounting Type: Through Hole
  • Category: Sensors
  • ECCN: EAR99
  • Production Lead Time: 23 weeks
  • REACH: Unaffected
