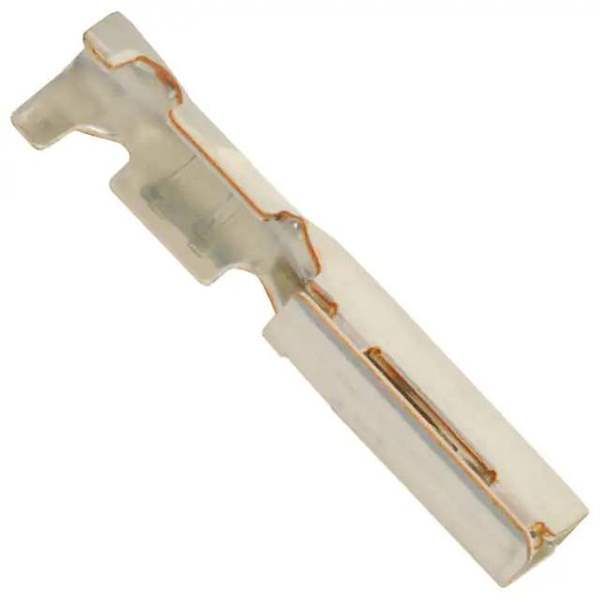

SWPR-001T-P025 Real Image
Same model may have multiple batches, images only for reference.

SWPR-001T-P025

Part No SWPR-001T-P025
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN SOCKET 22-26AWG CRIMP TIN / Socket Contact Tin 22-26 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr JST Sales America Inc.
Series JWPF
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Tin
Base Product Number SWPR-001
Standard Package 8,200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 349940-SWPR-001T-P025
Ultra Librarian 3D Model Ultra Librarian SWPR-001T-P025 CAD Model

Description

The 349940-SWPR-001T-P025 is a socket connector from the JWPF series.

  • Termination: Crimp
  • Wire Gauge: 22-26 AWG
  • Contact Finish: Tin
  • Packaging Options: Tape & Reel or Cut Tape
  • Standard Package: 8,200 pcs
  • Operating Temperature: -25°C to 85°C
